Safety information & warnings:
Risk of electric shock: Installation, connection and commissioning may only be carried out by a qualified electrician in accordance with the applicable installation regulations. Before working, disconnect the supply, secure it against reconnection and verify that it is de-energised.
Risk of fire: Rated current, tripping characteristic, breaking capacity and type must match the installation and the cable cross-section. Incorrectly selected devices may cause fire or personal injury.
Test residual current devices with the test button after installation and regularly thereafter.
Observe the manufacturer's operating and installation instructions. Use only as intended.
Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:
Hager Vertriebsgesellschaft mbH & Co. KG
Zum Gunterstal
66440 Blieskastel
Tel: +49 6842 945 0
E-Mail: info@hager.de

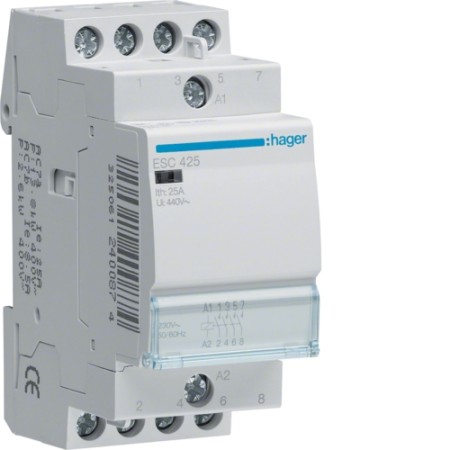

Hager ESC425 Installation Protector 25A 4 Locker 230V
Contact type: 4S
Number of contacts: 4
Rated current: 25 A
Control voltage AC current: 230 V
Number of modules: 2
AC voltage: 400 V
Insulation voltage: 440 V
Suit consumption: 21 VA
Impact strength: 4 kV
Frequency: 50/60 Hz
Connection type: screw technology
Total loss power at rated current: 9.4 W
Device life, electrical switching games: 30000
Machine life mechanical switching games: 1000000
Connection cross-section with flexible conductor: 1 - 6mm2
Connection cross section for rigid conductor: 1 - 10mm2
Operating temperature: -10 to 50 °C
Storage temperature: -40 to 80 °C
Height installed product: 83 mm
Wide installed product: 35.75 mm
Deep installed product: 60 mm
