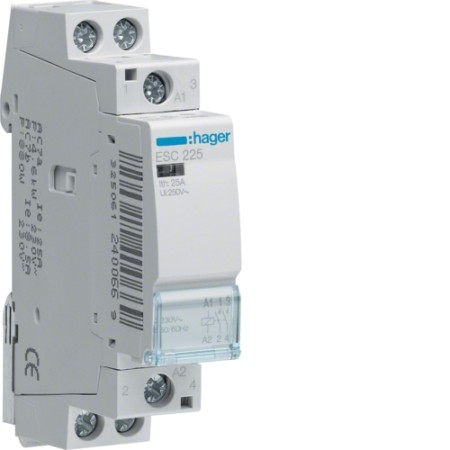

Hager ESC225 Insta Protector 2S 25A/230VAC Coil:230VAC
Installation Protector 25A 2S 230V
Protector in compact design, built
in accordance with EN 61095; DIN VDE 0637-3,
Contact position display by
display window; plombable with
plumbing cap(accessories);
auxiliary switches are
Can be flanged. Integrated
Label field. Contact protection after
DIN VDE 0106 part 100
AC voltage: 230 V
Number of modules: 1
Operating temperature: -10 to 50 °C
Storage temperature: -40 to 80 °C
Connection type: screw technology
Connection cross-section with flexible conductor: 1 - 6mm2
Connection cross section for rigid conductor: 1 - 10mm2
Contact type: 2S
