Safety information & warnings:
Risk of electric shock: Installation, connection and commissioning may only be carried out by a qualified electrician in accordance with the applicable installation regulations. Before working, disconnect the supply, secure it against reconnection and verify that it is de-energised.
Risk of fire: Rated current, tripping characteristic, breaking capacity and type must match the installation and the cable cross-section. Incorrectly selected devices may cause fire or personal injury.
Test residual current devices with the test button after installation and regularly thereafter.
Observe the manufacturer's operating and installation instructions. Use only as intended.
Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:
Hager Vertriebsgesellschaft mbH & Co. KG
Zum Gunterstal
66440 Blieskastel
Tel: +49 6842 945 0
E-Mail: info@hager.de

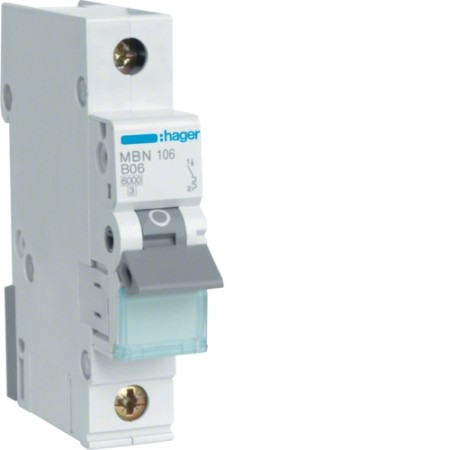

Hager MBN106 LS switch 6A/1pol/B circuit breaker 1 polig 6kA B-characteristic 6A 1 module
Rated current: 6 A
Trigger characteristic: B
Nominal shutdown capacity: 6 kA
Number of poles: 1 P
Number of modules: 1
AC voltage: 230/400 V
Insulation voltage: 500 V
Frequency: 50/60 Hz
Connection type: screw technology
Torque: 2,8Nm
Total loss power at rated current: 1.3 W
Device life, electrical switching games: 4000
Machine life mechanical switching games: 20000
Operating temperature: -25 to 60 °C
Storage temperature: -25 to 80 °C
Height installed product: 83 mm
Wide installed product: 17.5 mm
Deep installed product: 70 mm
