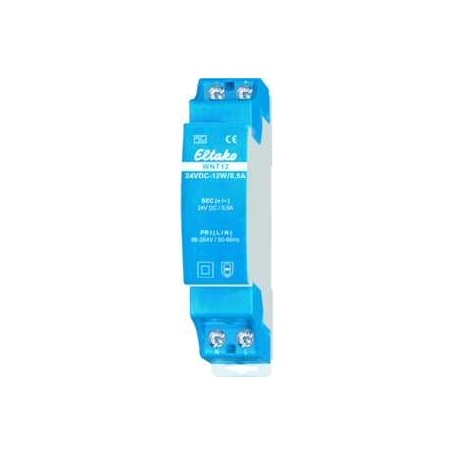

Eltako WNT12-12VDC-12W1A Wide-switched.
Wide-range switching power supply for mounting on support rail DIN-EN 60715 TH35 overload and overtemperature protection by disconnecting with automatic switch-on after the fault removal (autorecovery function) wide-range switching power supply. Stand-by-loss only 0.2 Watt. With a load greater than 50% of the rated power and always with adjacent switching power supply components greater than 12 watts of rated power, and with dimmers, a 1/2 division unit is required on both sides with the distance pieces DS12. Efficiency 83%. Stabilized output voltage ±1%, low residual ripple. Short circuit. Overload and overtemperature protection by switching off with automatic switching on after eliminating errors (autorecovery function). Secondary voltage 1: 12 W Width: 18 mm Max. Output power: 12 W Max. Output current: 1.0 A width in division units: 1
