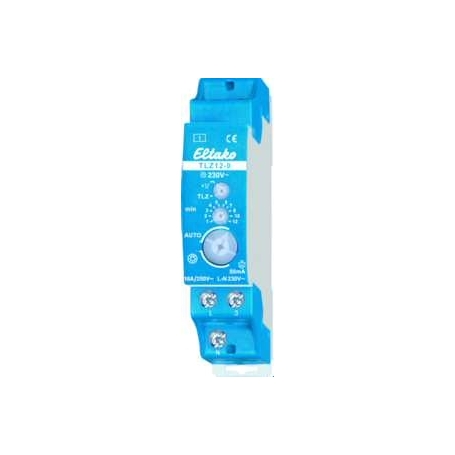

Eltako TLZ12-9 Stairlight Time Switch

Steplight time switch, electronic for mounting on support rail DIN-EN 50 022, for older installations, for the control voltage 230W AC, very low switching noise, Glow lamp current 50ma, for 3-wire circuits, not switchable, without autom. Detection of the circuit type, with a relay for 2300W incandescent lamp load, continuous light switch, switch-off warning and push-button continuous light, contact circuit in the zero passage of the sine wave to the device and lamp-saving width in division units: 1 drop-back delay: 1 - 10 min Number of switches: 1 control voltage 1: 230 - W measurement switch current: 10 A control voltage type 1: AC. Bulb load: 2000 W Max. Lamp load: 1000 VA Max. Fluorescent lamp load (Duo circuit): 1000 VA Max. Fluorescent lamp load (parallel compensated): 500 VA stairlight time switch with switchable switch-off warning. Stand-by-loss only 0.7 Watt. Contact circuit in the zero passage for protecting the contacts and lamps. In particular, this extends the service life of energy-saving lamps. By using a bistable relay, there is no coil loss power and no heating as a result even in the switched-on state. After installation, wait for the automatic short synchronization before the switched consumer is placed on the network. Control, supply and switching voltage 230W. Glow lamp current up to 50ma depending on the ignition voltage of the glow lamps. Precise time setting 1 to 12 minutes with minute scale. Own continuous light switch with the large rotary switch. For 3-wire circuits with attic lighting, not switchable. Only for retrofit
