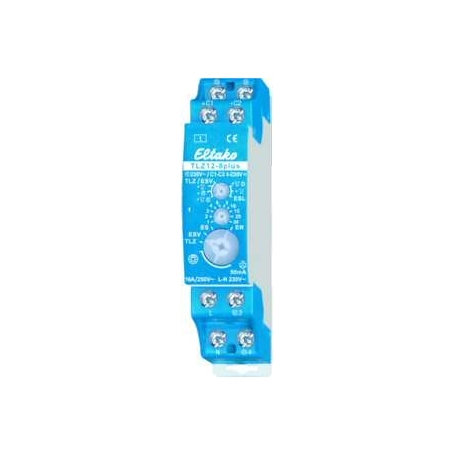

Eltako TLZ12-8PLUS Stair Time Switch

Number of hours:. Bulb load: 400 W Max. Fluorescent lamp load (parallel compensated): 400 VA stairlight time switch with switch-off warning and pushbutton continuous light can be switched on. Stand-by-loss only 0.7 Watt. With ESL optimization and multifunction. Contact circuit in the zero passage for protecting the contacts and lamps. In particular, this extends the service life of energy-saving lamps. By using a bistable relay, there is no coil loss power and no heating as a result even in the switched-on state. After installation, wait for the automatic short synchronization before the switched consumer is placed on the network. In addition, with galvanically separated universal control voltage. Automatic detection of the circuit type. Glow lamp current up to 50ma, depending on the ignition voltage of the glow lamps. Precise time setting 1 to 30 minutes with minute scale. Permanent light switch with the large rotary switch. After a power failure in the function setting
