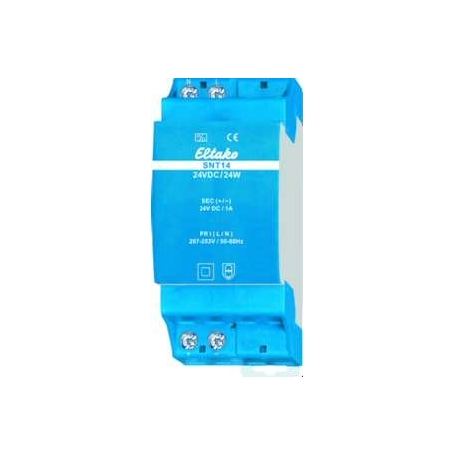

Eltako SNT14-24V/24W Switching Power Supply 24V DC/24W

Short circuit: Yes 1st output voltage: 24 - 24 W voltage type of supply voltage: DC Max. Output current 1: 1 A output voltage adjustable: No Rated supply voltage at AC 50 Hz: 230 - 230 W Stabilized: Yes Electrical connection design: Screw connection output voltage regulated: Yes Power consumption: 0.2 VA Power output: 24 W Suitable for series installation: Yes Support rail mounting possible: Yes Wall mounting possible: No Protection type (IP): IP20 Height: 58 mm Width: 36 mm Depth: 58 mm Power supply for 24V. Rated power 24W. Stand-by loss only 0.2 Watt. DIN-EN 60715 TH35 for mounting on support rail. 2 division units = 36mm wide, 58mm deep. With a load greater than 50% of the rated power and always with adjacent switching power supply components greater than 12 watts of rated power, and with dimmers, a 1/2 division unit is required on both sides with the distance pieces DS12. Input voltage 230W -(20% to +10) % efficiency 87%. Stabilized output voltage ±1%, low residual ripple. Short circuit. Overload and overtemperature protection by switching off with automatic switching on after eliminating errors (autorecovery function). The 24W DC output of these switched-mode power supplies is at the bottom so that a fast connection to the FAE14LPR actuators for 24W DC actuators can be established with the busbars SAS-. The SNT14 is always mounted to the right next to the last actuator FAE14LPR, since no plug-in bridge is provided. Power supply for 24V actuators. Stand-by loss only 0.2 Watt. With a load greater than 50% of the rated power and always with adjacent switching power supply components greater than 12 watts of rated power, and with dimmers, a 1/2 division unit is required on both sides with the distance pieces DS12. Efficiency 86%. Stabilized output voltage ±1%, low residual ripple. Short circuit. Overload and overtemperature protection by automatic shutdown
