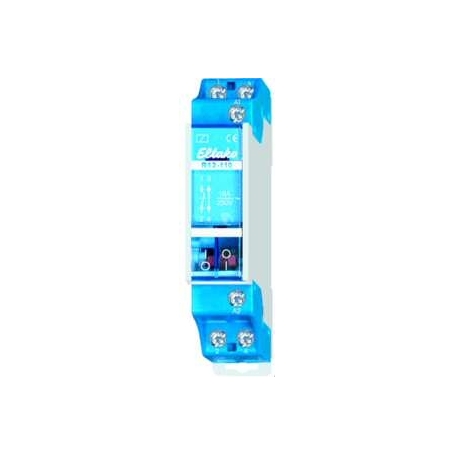

Eltako R12-110-12VDC INSTALLATION RELAY
zoom_out_map
chevron_left chevron_right

Safety information & warnings:

Risk of electric shock: Installation, connection and commissioning may only be carried out by a qualified electrician in accordance with the applicable installation regulations. Before working, disconnect the supply, secure it against reconnection and verify that it is de-energised.

Risk of fire: Rated current, tripping characteristic, breaking capacity and type must match the installation and the cable cross-section. Incorrectly selected devices may cause fire or personal injury.

Test residual current devices with the test button after installation and regularly thereafter.

Observe the manufacturer's operating and installation instructions. Use only as intended.

Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:

ELTAKO GmbH
Hofener Straße 54
70736 Fellbach
Tel.: +49711 94350000
E-Mail: website@eltako.de

Eltako R12-110-12VDC INSTALLATION RELAY

22110054
4010312201015
Eltako
Electromechanical switching relay with manual actuation and switching position display. Switch-on time 100%. Control power requirement 1.9W. Contact distance 3mm. Test voltage Contact/contact 2000W and test voltage control connections/contact 4000W. Mounting type: DIN rail Measurement current: 16 A Number of lockers: 1 Number of changers: 0 Number of openers: 1 Width in division units: 1 Max. Fluorescent lamp load (parallel compensated): 500 VA Max. Fluorescent lamp load (Duo circuit): 2300 VA Max. Incandescent lamp load: 2300 W supply voltage range: 230 - 230 W control voltage 1: 12 - 12 W control voltage type 1: DC frequency of control voltage 1: 50 - 50 Hz Max. Fluorescent lamp load: 2300 VA voltage type of supply voltage: DC Max. Switching current (cos phi = 0.6): 10 A Installation depth: 55 mm Function: other

€34.94 VAT included

€29.12 VAT excluded

check 3-10 days
Legal guarantee – EU notice Click to enlarge

Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:

ELTAKO GmbH
Hofener Straße 54
70736 Fellbach
Tel.: +49711 94350000
E-Mail: website@eltako.de
