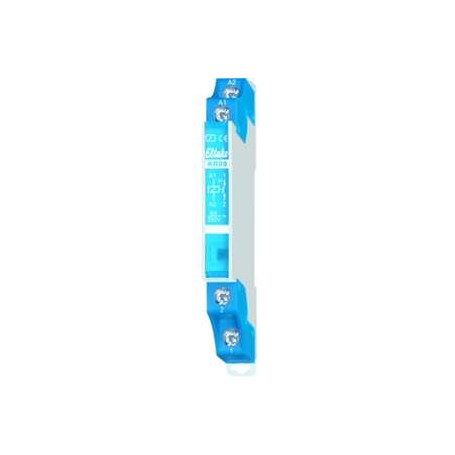

Eltako KR09-24VUC

Coupling relay width 9 mm for support rails DIN EN 60715 TH35, switching position indicator with LED. Only 1/2 division unit = 9 mm wide, 55 mm deep. Safe separation according to WDE 0106, part 101 Mounting type: DIN rail Measurement current: 6 A Number of locks: 1 Number of changers: 0 Number of openers: 0 Width in division units: 0.5 Max. Fluorescent lamp load (parallel compensated): 300 VA Max. Luminous lamp load (Duo circuit): 600 VA Max. Incandescent lamp load: 500 W supply voltage range: 250 - 250 W control voltage 1: 24 - 24 W control voltage type 1: AC/DC frequency of control voltage 1: 50 - 50 Hz Max. Luminous lamp load: 600 VA voltage type of supply voltage: AC Max. Switching current (cos phi = 0.6): 2 A Installation depth: 55 mm Function: partially electronic coupling relays. No standby loss. The most modern hybrid technology combines the advantages of wear-free electronic control with the high power of special relays. Control indicator with LED. Only 0.2W. Safe separation according to WDE 0106, part 101, therefore also usable as a coupling relay.
