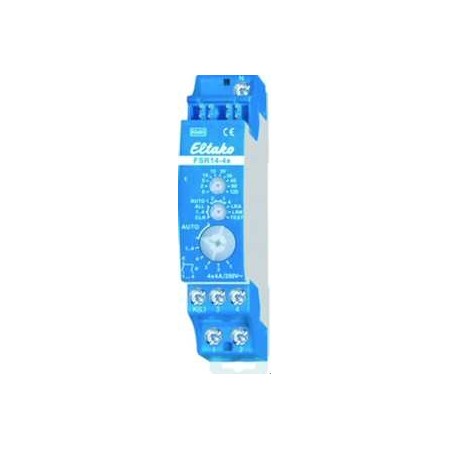

Eltako FSR14-4x RS485-Bus actuator 4-channel

Current surge relays for mounting on support rail DIN-EN 60715 TH35, 16 A/250 V AC, potential-separated from supply voltage, with DX technology, bidirectional, stand-by-loss only 0.1 Watt current surge relays with 4 channels, each 1 closer 4A/250V AC, -Glüh lamps 1000W, potential-separated from supply voltage, with DX. Bidirectional. Stand-by loss only 0.1 Watt. Connection to Eltako-RS485-Bus. Cross-wiring bus and power supply with plug-in bridge. To this end, simply connect the N conductor to the terminal (N) and L to K(L). This results in an additional stand-by loss of only 0.1 Watt. If all 4 relays of the FSR14-4x are switched on, 0.7 watts are required. If the supply voltage fails, it is switched off in a defined manner. The channels can be taught independently as ES and/or ER channels. Scene control: A plurality of channels of one or more FSR14-4x can be switched on or off to one scene with one of the four control signals of a pushbutton learned as a scene scanner. Central commands on the PC are sent with the building radio visualization and control software GFVS. Learn one or more FSR14-4x on PC. With the rotary switches, the probes are learned and the 4 channels are tested if necessary. The LED under the upper rotary switch accompanies the learning process according to the user manual and displays control commands during operation by short flashing. Width in division units: 1 Max. Switching current: 4 A Max. Switching power: 1000 W Max. Number of switching outputs: 4 Bus system EIB/KNX: No Bus system Funkbus: Yes Bus system Powernet: No Bus connection included: Yes Bus system LON: No On site/hand operation: Yes With LED indicator: No Different phases connectable: No Modular expansion option: No
