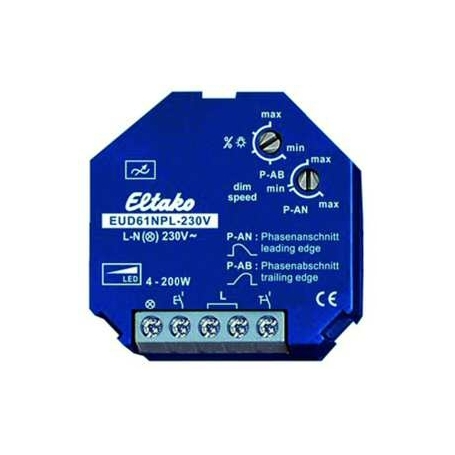

Eltako EUD61NPL-230V Universal Dimming Switch

Universal dimming switch without N connection, Power MOSFET up to 200W. Stand-by-Lower only 0.5 W, with control inputs for light sensor and light switch, minimum brightness, mode of operation and dimming speed adjustable, in the event that light switch cannot be replaced by light sensor, a separate control input for light switch is present, with children's room circuit, and slumber circuit nominal voltage: 230 W Color: blue Operation type: rotary knob Halogen-free: Yes Load type: universal. Stand-by loss only 0.5 Watt. With control inputs for light sensor and light switch. Minimum brightness, operating mode and dimming speed adjustable. For installation. 45mm long, 45mm wide, 18mm deep. Universal dimming switch for R and C loads up to 200W, depending on the ventilation conditions. Dimmable ESL and 230V LED lamps in the operating mode phase section up to 200W or in the operating mode phase section up to 40W, depending on the ventilation conditions. In the case of dimmable 230V LED lamps, which also light slightly in the switched-off state, a basic load element GLE must be connected parallel to the lamp. L-loads (inductive loads, for example wound transformers) must not be connected. Switching in the zero passage with soft-on and soft-out for lamp protection. Control voltage, supply voltage and switching voltage 230W. Minimum load 4W. Short control commands turn on/off, permanent control changes brightness up to maximum value. An interruption of the control changes the dimming direction. Set
