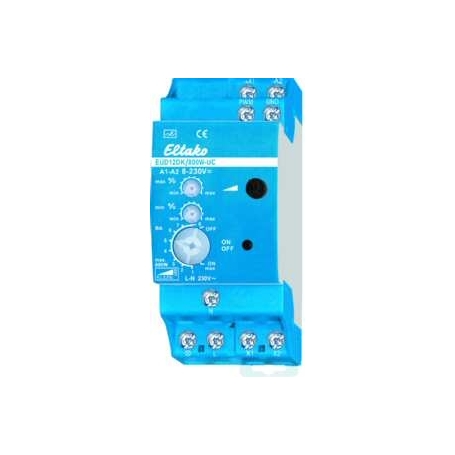

Eltako EUD12DK/800W-UC Universal Dimming Switch

Universal dimming switch with rotary knob, Power MOSFET up to 800W. Automatic lamp detection. Stand-by loss only 0.2 Watt. Minimum brightness and maximum brightness adjustable. DIN-EN 60715 TH35 for mounting on support rail. 2 division units = 36 mm wide, 58 mm deep. Universal dimming switch for lamps up to 800W, depending on the ventilation conditions, dimmable energy saving lamps ESL and dimmable 230V LED lamps additionally depending on the lamp electronics. Up to 3600W with power inputs LUD12 at the terminals X1 and X2. Universal control voltage 8..230V UC Mounting type: REG Color: blue Operation type: rotary knob Halogen-free: Yes Composition: other load type: universal Serial dimmer: No Conveyor input: No Light value store: Yes Applicable with button: Yes Applicable with motion detector: No Applicable with presence detector: No Applicable with timer/timer: No Applicable with radio button: No. Automatic lamp detection. Stand-by loss only 0.2 Watt. Minimum brightness and maximum brightness adjustable. DIN-EN 60715 TH35 for mounting on support rail. 2 division units = 36mm wide, 58mm deep. Universal dimming switch for lamps up to 800W, depending on the ventilation conditions, dimmable energy saving lamps ESL and dimmable 230V LED lamps additionally depending on the lamp electronics. Up to 3600W with power add-ons LUD12 at the connections X1 and X2. Universal control voltage 8..230V UC, galvanically isolated from supply and switching voltage 230W. No minimum load required. PWM control with 10-24V DC to d
