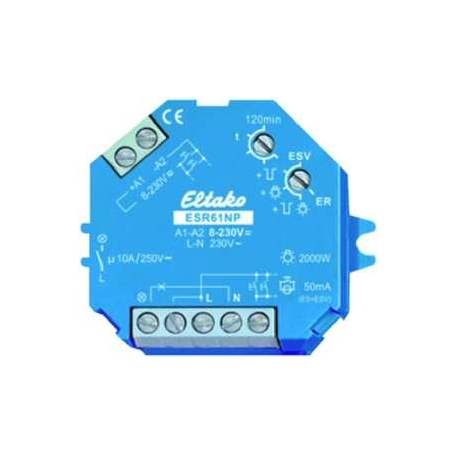

Eltako ESR61NP 230V+UC power surge relays UP

Current surge switches for installation and AP mounting control input 230W AC and additional universal control voltage 8 to 230W UC, with a rotary switch for the functions ER = switching relays, ES = current surge switches and ESW = current surge switches with reverse deceleration number of contacts as closers: 1 measurement control voltage Us at AC 50 Hz: 8 - 230W current surge relay 230V+UC. 1 Locker not potential-free 10A/250V AC, incandescent lamps 2000W, fallback delay with switch-off warning and pushbutton continuous light can be switched on. Stand-by loss only 0.7 Watt. For installation. 45mm long, 45mm wide, 18mm deep. Contact circuit in the zero passage for protecting the contacts and lamps, in particular this extends the service life of energy-saving lamps. The most modern hybrid technology combines the advantages of wear-free electronic control with the high power of special relays. By using a bistable relay, there is no coil loss power and no heating as a result even in the switched-on state. After installation, wait for the automatic short synchronization before the switched consumer is placed on the network. Control voltage 230W, in addition with galvanically separated universal control voltage 8..230V UC. Supply and switching voltage 230W. Very low switching noise. Time setting up to 120 minutes in the function ESW. Sensors with a glow lamp current up to 50ma can be connected to the control input with a glow lamp symbol. If the supply voltage fails, it is switched off in a defined manner. If the delay time is set to a minimum in the ESW function, the relapse delay is switched off and the normal current surge switch function ES results. Switchable to the switching relay ER function. In the function ER, no glow lamp current is permissible and should only be used the control input A1-A2. In the function ER also suitable for feedback with the switching voltage of a dimming switch. When switched on
