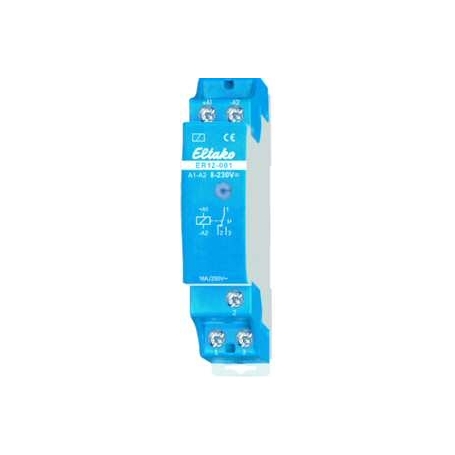

Eltako ER12-001-8..230V UC relay

Control relays for support rails DIN EN 60715 TH35 switching position indicator by light-emitting diode, low control power requirement, low switching noise, for small currents, low self-heating, with integrated free-wheeling/lowering diode (A1=+, A2=′′), ER12-001-12 ̊230 W UC according to WDE 010, part 101, therefore also used as coupling relay A250. No standby loss. The most modern hybrid technology combines the advantages of wear-free electronic control with the high power of special relays. Low switching noise. Control indicator with light-emitting diode. Integrated freewheel/leak diode (A1 =+, A2 =−). Safe separation according to WDE 0106, part 101, therefore also usable as a coupling relay. By using a bistable relay, there is no coil loss power and no heating as a result even in the switched-on state. The relay contact can be open or closed during commissioning and synchronizes during the first actuation. This relay is not suitable for feedback with the switching voltage of a dimming switch. The electronics have no own power supply and therefore no stand-by loss. Only when the control contact is closed is the microcontroller which switches the bistable relay in the correct direction. When the control contact is opened or a falling control voltage is switched back. TLE: 1 Number of contacts as changer: 1 Rated control voltage Us at AC 50 Hz: 230 - 230 W
