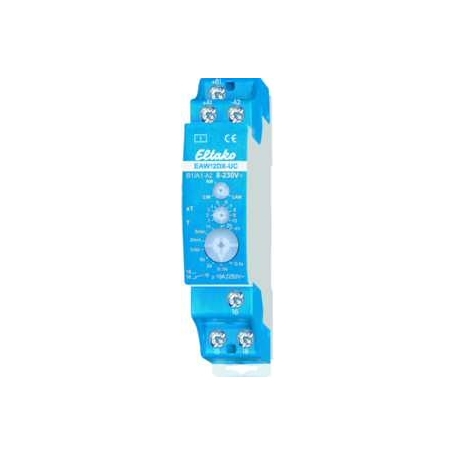

Eltako EAW12DX-UC time relay

Multifunction time relays for mounting on support rail DIN-EN 60715 TH35, for all control voltages from 8 to 230W DC and AC (50/60 Hz), times between 0.1 seconds and 40 hours with the time bases 0.1, 0.5, 2 and 5 seconds, 1, 2 and 5 minutes, 1, 2 and 4 hours as well as the multiplier of 1-10 are adjustable, contact circuit in the zero crossing of the sinus wave, 0.1 Watt-by-adjustable time. Stand-by-loss only 0.02 - 0.4 Watt. This analog adjustable time relay is identical to the multifunction time relay, but has only one function. In the EAW12DX-UC type, a rotary switch can be used to set the functions of switch-on wipers (EW), switch-off wipers (AW) or switch-on and switch-off wipers (EAW). To this end, simply connect the N conductor to the terminal (N) and L to 15 (L). This results in an additional stand-by consumption of only 0.1 Watt. Universal control voltage 8..230V UC. Supply voltage like the control voltage. Time range from 0.1 seconds to 40 hours. By using a bistable relay, there is no coil loss power and no heating as a result even in the switched-on state. After installation, wait for the automatic short synchronization before the switched consumer is placed on the network. The light-emitting diode under the large rotary switch informs about the contact position during the time sequence. control voltage 1: 8 - 230 W control voltage type 1: AC/DC switching power fluorescent lamps parallel: 500 VA 1. Time range from/to: 40 - 0.1 Function: Switch-on/off switch relays Number of switches: 1 Switching power Incandescent lamps: 2000 W Width in division units: 1 Supply voltage range: 8 - 230 W Switching power Fluorescent lamps inductiv: 1000 VA Mounting height: 58 mm Switching power Fluorescent lamps DUO: 1000 VA Actuating type: analog with multifunction 1. Time unit: minutes/hour assembly type: DIN rail
