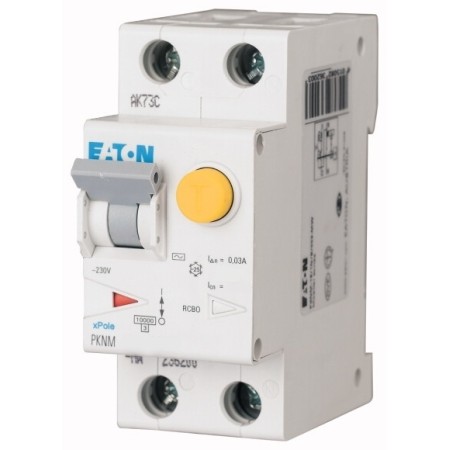

Eaton PKNM-16/1N/B/003-G-MW FI/LS-Schalter AC 16A/1+N/B 30mA Type 'G' 3kA 236209
zoom_out_map
chevron_left chevron_right

Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:
Eaton
Eaton Industries (Austria) GmbH
Eugenia 1​ A-3943 Schrems
Tel.: +43 (0) 50868 - 0​
infoaustria@eaton.com

Eaton PKNM-16/1N/B/003-G-MW FI/LS switch AC 16A/1+N/B 30mA Type 'G' 3kA 236209

Number of poles (total)
2
Number of secured poles
1
Measurement voltage
V230
Rated current
A16
Measurement error current
A0.03
Error current type
-
Energy limiting class
3
Dimensional switching capacity according to EN 60898
KA10
IEC 60947-2 rated
KA0
Frequency
50 Hz
Trigger characteristic
B
Interconnecting neutral conductor
yes
Overvoltage category
3
Pollution
2
Width in division units
2
Installation depth
mm70
Suitable for underground installation
no
Type of protection (IP)
IP20
Impact resistance
KA3
Type of voltage
AC
Missing trigger protection
yes

€94.40 VAT included

€78.67 VAT excluded

check 2-5 days
