Safety information & warnings:
Risk of electric shock: Installation and connection only by a qualified electrician. Disconnect the supply before mounting, including covers and frames.
Risk of fire: Do not exceed the stated rating (current/power). Do not overload sockets.
Use only in environments for which the stated degree of protection (IP) is suitable. Do not use damaged devices.
Observe the manufacturer's operating and installation instructions. Use only as intended.

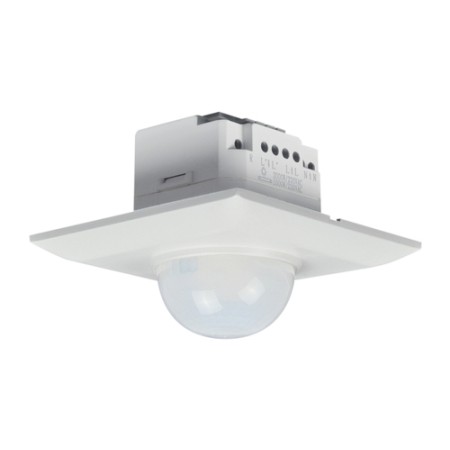

Züblin 25000 Swiss Garde 360 Plus 16m white
• Ideal for all standard applications such as corridors,
staircases, lounges, cellars, underground garages etc.
Technical data
Rated voltage: 230 V / 50 Hz
Switching power: 2300 W / 10 ohmic (cos φ 1.0)
1150 VA / 5 A inductive (cos φ 0.5)
EVG single flame: 30x 18W IS, 25x 36W or 20x 58by max.
EVG double flame: 20x (2x 18of 15 x (2x 36W) or
10x (2x 58and max.
detection range: 360°
Range: approx. Ø 14 m at 3 m height
Mounting height: approx. 2–6 m
Dawning regulator: 5–2000 lx
(or current lux value via remote control)
Time controller: short pulse (about 1 s), about 10 s to 20 min
Protection type: IP20 internal mounting, class II
Temperature range: -20 to +40 °C
Mass: 86x86x35mm
Test mark: TÜV Süd, CE
