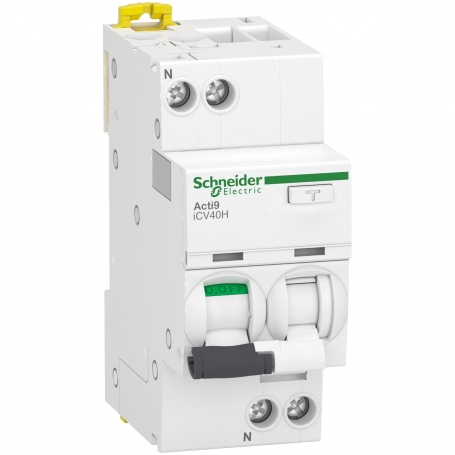

Schneider A9DGH613 Acti9 icv40h - FI/LS - 1P+N - 13 A - B - 10ka - 30 ma - A/G Type
zoom_out_map
chevron_left chevron_right

Safety information & warnings:

Risk of electric shock: Installation, connection and commissioning may only be carried out by a qualified electrician in accordance with the applicable installation regulations. Before working, disconnect the supply, secure it against reconnection and verify that it is de-energised.

Risk of fire: Rated current, tripping characteristic, breaking capacity and type must match the installation and the cable cross-section. Incorrectly selected devices may cause fire or personal injury.

Test residual current devices with the test button after installation and regularly thereafter.

Observe the manufacturer's operating and installation instructions. Use only as intended.

Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:

Schneider Electric GmbH
Gothaer Straße 29
40880 Ratingen
Telefon: +49 (0) 211 7374 3000
E-Mail: de-schneider-service@se.com

Primo


Schneider A9DGH613 Acti9 icv40h - FI/LS - 1P+N - 13 A - B - 10ka - 30 ma - A/G Type


A9DGH613
3606481489548

Device position in the system
Date
Network frequency
50/60 Hz
Operating measurement voltage Ue
230 V AC 50/60 Hz
Limit of magnetic triggering
3... 5 x in
residual current release technology
Voltage independent
Bem.-Betr.-off switch. Ics
7500 A 75% Icn at 230 V AC 50/60 Hz corresponds to EN/IEC 61009-2-1
Nominal and triggering cap.
Idm 6000 A at 230 V AC 50/60 Hz corresponds to EN 61009-2-1
Idm 500 A at 230 V AC 50/60 Hz corresponds to IEC 61009-2-1
Limiting class
3 conforming to EN/IEC 61009-2-1
Rated insulation voltage Ui
400 V AC 50/60 Hz
Measuring impact strength [Uimp]
4 kV
Plus contact display
Yes
Type of operation
Safety switch
Display on the device
ON/OFF display
Error message
Assembly variant
Screw terminals
Mounting mount
DIN rail
Cam rail and distributor block Compatibility
Top or bottom: Zinc
9-mm grid
4
Height
85 mm
Width
36 mm
Depth
74 mm
Product weight
210 g
Colour
White
Mechanical life
20000 cycles
Electrical life
20000 cycles
Description of locking options
Plombable
Locking device
Connections - Terminals
Tunnel clamps on top or bottom1...16 mm2 fixed
Tunnel clamps on top or bottom1...10 mm2 flexible
Wire insulation length
14 mm for top or bottom connection
Suction torque
2 Nm up or down
Earthlock protection
Integrated
Assembly
Standards
EN/IEC 61009-2-1
Product certifications
THE
Type of protection (IP)
IP20 corresponds to IEC 60529
IP40 (modular housing) corresponds to IEC 60529
Pollution
3
Overvoltage category
conforming to IEC 60364
electromagnetic compatibility
8/20 μs impulse withstand, 250 A conforming to EN/IEC 61009-2-1
Relative humidity
95% at 55° C
Installation height
2000 m
Ambient temperature during operation
-25...60 °C
Ambient temperature in storage
-40...85 °C
9.9 cm
Packaging units
Packaging type VPE1
PCE
Number of devices per pack
1
Packaging weight (Lbs)
213 g
Height VPE1
8.3 cm
Width VPE1
4,3 cm
Length VPE1
Series
Acti9
Product name
Acti9 iCV40
Product or component type
Overcurrent protection switch (FI/LS)
Short description of the device
ICV40H
Description of the Pole
1P + N
Number of protected Poland
1
neutral position
left
Rated current [In]
13 A
Network connection
AC
Technology of the triggering unit
Thermomagnetic
Characteristics
B
Earth solubility
30 mA
Earthlock protection time delay.
Undelayed
Earth-lock protection class
Type A-G
Switching capacity
10000 A Icn at 230 V AC 50/60 Hz corresponds to EN/IEC 61009-2-1
Suitability for insulation
Yes corresponds to EN/IEC 60947-2
Quality label
OF

€81.15 VAT included

€67.63 VAT excluded

check 2,5 days
