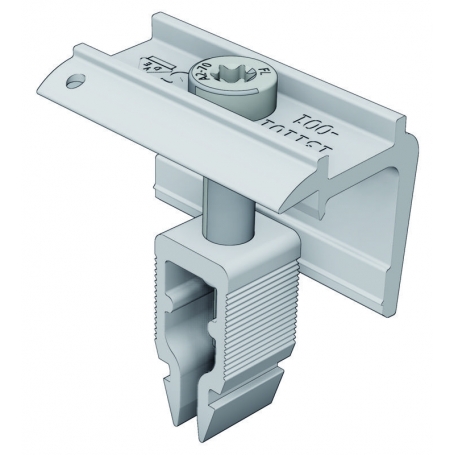

Schletter 131101-001 photovoltaic terminal Rapid16 terminal 30-40, aluminium bar

RAPID 16 THE NEW KLEMMENFAMILIE The Schletter module terminal family Rapid16 offers many advantages, such as e.g. better storage by minimal variants and the grounding pin in each module clamp. Rapid16 is designed for all Schletter module support profiles with 8 mm click groove and for module frame heights of 30 - 50 mm. • Minimum variants for all applications • Integrated grounding pin • Optimum storage and fast installation • General structural approval Z14.4-631 • 10 years warranty The clamping area is divided into 2 sizes. The low module terminals can clamp modules with a frame height of 30-40 mm. The higher ones are suitable for frame heights of 40-50 mm. In all center terminals and in the case of the high end terminals, the claws can be rotated and are therefore suitable for vertical and horizontal (linear) module clamping. Exceptions are the end terminals for low module frames. For geometric reasons, rotation is not possible here. Therefore, there is the low end clamp also in the variant “H”. All clamps are also available in black anodized to match these optically to black module frames.
