Safety information & warnings:
Risk of electric shock: To be installed only by a qualified electrician and only when de-energised.
Risk of fire: Observe the permissible conductor cross-sections, conductor types, rated current and voltage, and tightening torques. Loose or overloaded connections can overheat.
Crimp ferrules, cable lugs and connectors only with suitable tools.
Observe the manufacturer's installation instructions. Use only as intended.
Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:
OBO Bettermann Holding GmbH & Co. KG
OBO Bettermann Beteiligungs-GmbH
Hüingser Ring 52
58710 Menden
Deutschland
Telefon: 0049-2373-89-0
E-Mail: info@obo.de

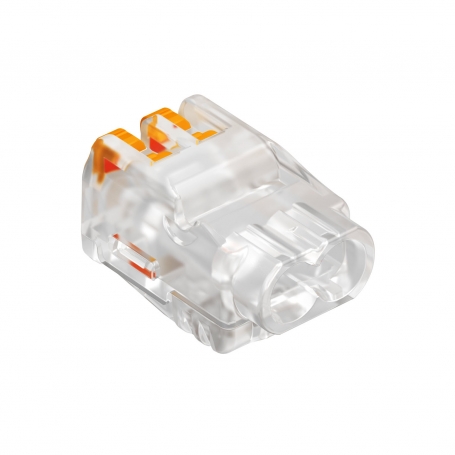

OBO BETTERMANN 61 225 FL Universal clamp for 2 rigid flexible conductor 0.2-2.5mm2, PC, transparent 2054450 100 pieces
Screwless clamp for connecting conductors, tested according to EN 60998. The conductor type can optionally be flexible, polygonal or rigid. When using rigid conductors, it is not necessary to open the release lever. The conductor can be inserted directly into the terminal. To hoist the conductors simply open the release lever. The vein can be pulled out easily. The stripping length is 9 mm (+1 mm). The test opening is located on the upper side of the clamp, thereby having a very good access with the phase tester and test pin (max. Ø 2 mm). The maximum permissible ambient temperature according to EN 60998 is 85°C.
