Safety information & warnings:
Risk of electric shock: To be installed only by a qualified electrician and only when de-energised.
Risk of fire: Observe the permissible conductor cross-sections, conductor types, rated current and voltage, and tightening torques. Loose or overloaded connections can overheat.
Crimp ferrules, cable lugs and connectors only with suitable tools.
Observe the manufacturer's installation instructions. Use only as intended.
Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:
OBO Bettermann Holding GmbH & Co. KG
OBO Bettermann Beteiligungs-GmbH
Hüingser Ring 52
58710 Menden
Deutschland
Telefon: 0049-2373-89-0
E-Mail: info@obo.de

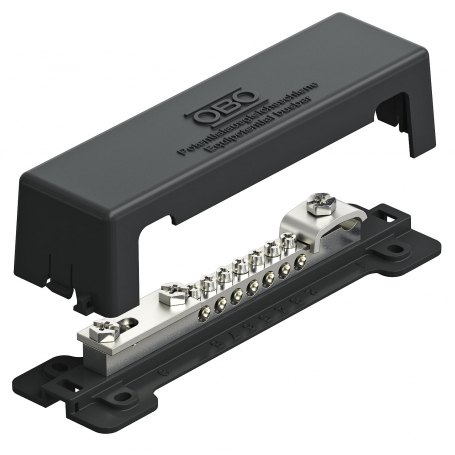

OBO BETTERMANN 1809 A potential compensation rail for outdoor areas 50x5mm, V2A, 1.4301, black 5015111
Connection options: - 7 x single- or multi-wired lines up to 25 mm2 or fine-wired lines up to 16 mm2 - 1 x round conductor Rd 8-10 - 1 x flat band up to FL30 or round conductor Rd 8-10 - base plate and cover made of polystyrene - UV-resistant - screws and overlay made of VA - flash current-bearing capacity 50 kA (10/350) Colour: black Weight: 23 kg/100
