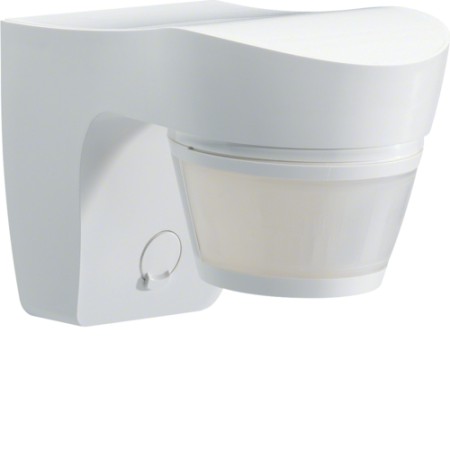

Hager EE830 motion detector 200 IP55 white



outdoor motion detector lighting control in commercial buildings and residential buildings by recording moving persons. detection range of 200° and a range of max. 16m at a recommended mounting height of 2.5m. Horizontal lens adjustment of +/- 80° and vertical lens adjustment of 0-30°. detection using Fresnel lenses. Limiting the monitoring area by means of included apertures possible. The time delay and the brightness value are set directly on the device, a pulse can also be generated. Mounting on ceiling and corners using optional mounting adapter EE825 or. EE827 possible.

Assembly type:Coating
Detection angle:200 °C
Type of protection:IP55
max. Assembly chair:4 m
Diameter field on floor:16 m
Contact loadability:AC1
Contact type:1W + N
Switching power bulbs:1500 W
Brightness measurement range:5 / 1000 Lux
Control of sensitivity:no
Supply voltage:230V +10% / -15%
Frequency:50 Hz
Color:white
Height installed product:2.5 m
