Safety information & warnings:
Risk of electric shock: Installation, connection and commissioning may only be carried out by a qualified electrician in accordance with the applicable installation regulations. Before working, disconnect the supply, secure it against reconnection and verify that it is de-energised.
Risk of fire: Rated current, tripping characteristic, breaking capacity and type must match the installation and the cable cross-section. Incorrectly selected devices may cause fire or personal injury.
Test residual current devices with the test button after installation and regularly thereafter.
Observe the manufacturer's operating and installation instructions. Use only as intended.
Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:
Hager Vertriebsgesellschaft mbH & Co. KG
Zum Gunterstal
66440 Blieskastel
Tel: +49 6842 945 0
E-Mail: info@hager.de

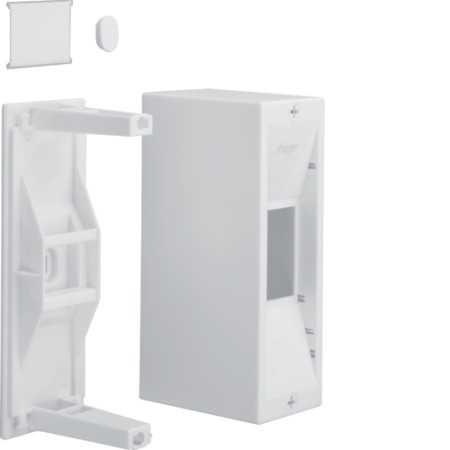

Hager GD102N Mini distributor AP,Gamma,1x2TE,o.door,B55xH160xT82mm
Mini distributor IP30 2 space units Mini distributor as micro distributor made of plastic for the installation of row-mounted germs according to the standard DIN 43 880 as protection cover according to BGV A2 for Geraete up to 63 A, 400 V /50 Hz, protection class IP30. For splash mounting with 46 mm barley slot, serially plombable.
Mounting type: plaster
Material of housing: plastic
Protection type: IP30
Protection class: Protection class II
Number of distribution rows: 1
RAL colour number: 9010
Number of modules: 2
Color: white
Door closure type: without closure
Height installed product: 160 mm
Wide installed product: 55 mm
Deep installed product: 82 mm
