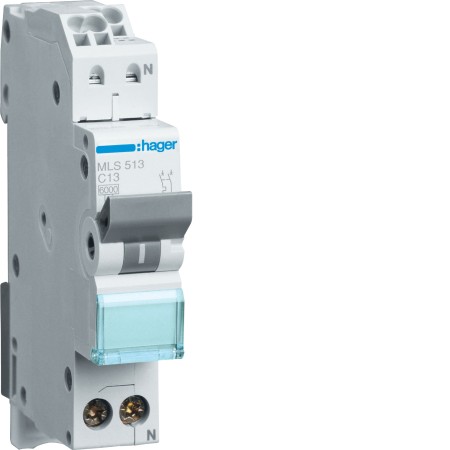

Hager MLS513 LS switch 13A/1pol+N/C 6kA,1TE, QC QuickConnect

Circuit breaker 1P+N 6kA C-13A Quick Connect 1M

Rated current: 13 A
Trigger characteristic: C
Nominal shutdown capacity: 6 kA
Number of poles: 2 P
Number of modules: 1
AC voltage: 230/240 V
Insulation voltage: 500 V
Frequency: 50/60 Hz
Connection type: QuickConnect
Torque: 1.9Nm
Total loss power at rated current: 4 W
Device life, electrical switching games: 1000
Machine life mechanical switching games: 20000
Operating temperature: -25 to 60 °C
Storage temperature: -25 to 80 °C
Height installed product: 86 mm
Wide installed product: 17.5 mm
Deep installed product: 70 mm

€14.53 VAT included

€12.11 VAT excluded

check 2-5 days
