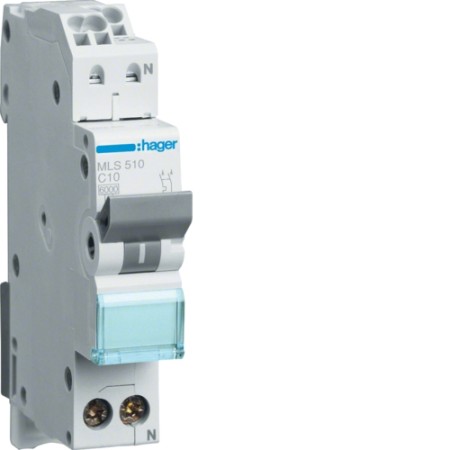

Hager MLS510 Circuit breaker 1P+N 6kA C-10A Quick Connect 1M LS PH/N
| Rated current: | 10 A |
| Trigger characteristic: | C |
| Nominal deactivation capacity: | 6 |
| Number of poles: | 2 P |
| Number of modules: | 1 |
| AC voltage: | BY 230/240 V |
| Insulation voltage: | 500 V |
| Frequency: | 50/60 Hz |
| Connection type: | QuickConnect |
| Torque: | 1.9Nm |
| Total power loss under rated current: | 2.4 W |
| Device life, electrical switching games: | 1000 |
| Machine life mechanical switching games: | 20000 |
| Operating temperature: | -25 to 60 °C |
| Storage temperature: | -25 to 80 °C |
| Height installed product: | 86 mm |
| Wide installed product: | 17.5 mm |
| Deep Installed Product: | 70 mm |
