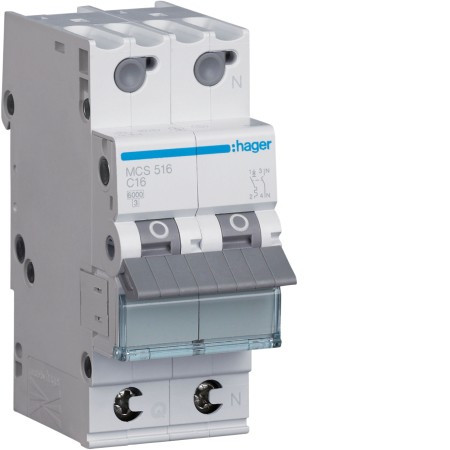

Hager MCS516 LS switch 16A/1pol+N/C 6kA,QC QuickConnect C-16A 2M

Rated current: 16 A
Trigger characteristic: C
Nominal shutdown capacity: 6 kA
Number of poles: 2 P
Number of modules: 2
AC voltage: 230/400 V
Insulation voltage: 500 V
Frequency: 50/60 Hz
Connection type: QuickConnect
Torque: 2,8Nm
Total loss power at rated current: 5.2 W
Device life, electrical switching games: 4000
Machine life mechanical switching games: 20000
Operating temperature: -25 to 60 °C
Storage temperature: -25 to 80 °C
Height installed product: 83.4 mm
Wide installed product: 35 mm
Deep installed product: 70 mm

€11.94 VAT included

€9.95 VAT excluded

check 2-5 days
