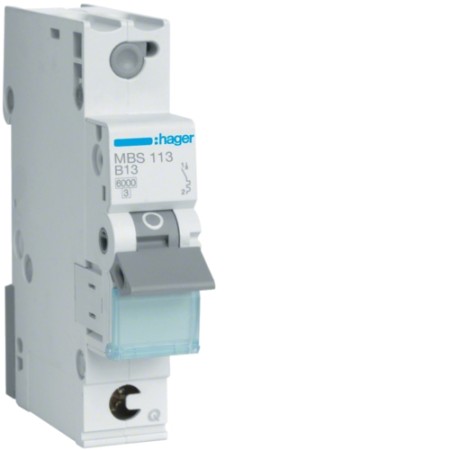

Hager MBS113 LS switch 13A/1pol/B 6kA, QC QuickConnect
zoom_out_map
chevron_left chevron_right

Safety information & warnings:

Risk of electric shock: Installation, connection and commissioning may only be carried out by a qualified electrician in accordance with the applicable installation regulations. Before working, disconnect the supply, secure it against reconnection and verify that it is de-energised.

Risk of fire: Rated current, tripping characteristic, breaking capacity and type must match the installation and the cable cross-section. Incorrectly selected devices may cause fire or personal injury.

Test residual current devices with the test button after installation and regularly thereafter.

Observe the manufacturer's operating and installation instructions. Use only as intended.

Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:

Hager Vertriebs­ge­sell­schaft mbH & Co. KG
Zum Gunter­stal
66440 Blies­kastel
Tel: +49 6842 945 0
E-Mail: info@hager.de

Primo


Hager MBS113 LS switch 13A/1pol/B 6kA, QC QuickConnect


MBS113
3250614314728
Hager

Circuit breaker 1polig 6kA B-Characteristic 13A QuickConnect 1 module Circuit breaker with QuickConnect terminal according to DIN EN 60898-1 (VDE 0641 part 11):2003-12; EN 60898-1:2003; EN 60898-1, pr A1:2003, at the exit up to 16A and at the access for the concealment up to 63A. LS with time-delayed thermal trigger for overload protection and electromagnetic trigger for short-circuit protection. Suitable for retrofit installation of additional equipment; Possibility of marking directly on the device and individual removal from the phase rail composite by unlocking the quick attachment of the hat rails.


Rated current: 13 A
Trigger characteristic: B
Nominal shutdown capacity: 6 kA
Number of poles: 1 P
Number of modules: 1
AC voltage: 230/400 V
Insulation voltage: 500 V
Frequency: 50/60 Hz
Connection type: QuickConnect
Torque: 2,8Nm
Total power loss under rated current: 2.2 W
Device life, electrical switching games: 4000
Machine life mechanical switching games: 20000
Operating temperature: -25 to 60 °C
Storage temperature: -25 to 80 °C
Height installed product: 83.4 mm
Wide installed product: 17.5 mm
Deep installed product: 70 mm

€4.98 VAT included

€4.15 VAT excluded

check 2-5 days
