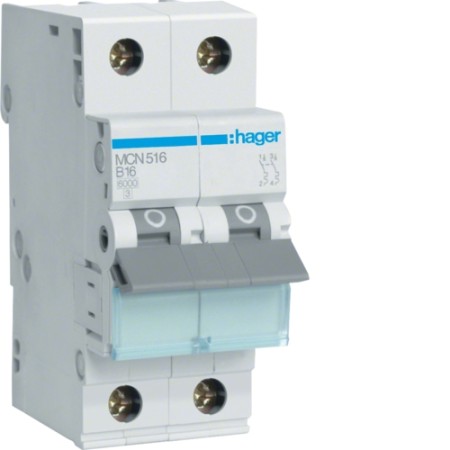

Hager MCN516 LS switch 16A/1pol+N/C 6kA
Circuit breaker 1polig+N 6kA C-Characteristic 16A 2 Modules Circuit breaker according to DIN VDE 0641 part 11/8.92 , contact protection IP2x according to DIN VDE 0106 part 100 with VDE characters. LS with time-delayed thermal exhaust for overload protection and electromagnetic exhaust for short-circuit protection. Suitable for retrofit installation of additional equipment. Possibility of marking directly on the device and individual removal from the phase rail composite by unlocking the quick attachment of the hat rails.
Rated current: 16 A
Trigger characteristic: C
Nominal shutdown capacity: 6 kA
Number of poles: 2 P
Number of modules: 2
AC voltage: 230/400 V
Insulation voltage: 500 V
Frequency: 50/60 Hz
Connection type: screw technology
Torque: 2,8Nm
Total power loss under rated current: 4.4 W
Device life, electrical switching games: 4000
Machine life mechanical switching games: 20000
Operating temperature: -25 to 60 °C
Storage temperature: -25 to 80 °C
Height installed product: 83 mm
Wide installed product: 35 mm
Deep installed product: 70 mm
