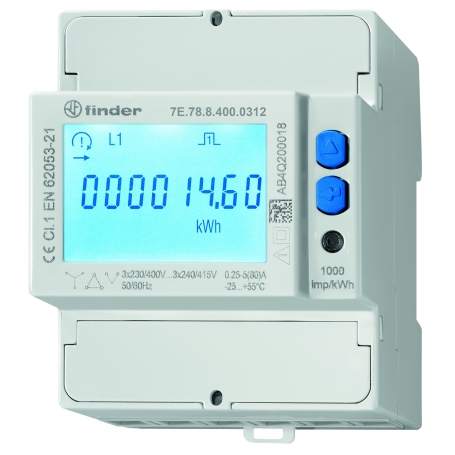

Finder 7E7884000312 meter for 3-phase three-phase current, up to max, M-bus and SO interface, MID-compliant
zoom_out_map
chevron_left chevron_right

Safety information & warnings:

Risk of electric shock: Installation, connection and commissioning may only be carried out by a qualified electrician in accordance with the applicable installation regulations. Before working, disconnect the supply, secure it against reconnection and verify that it is de-energised.

Risk of fire: Rated current, tripping characteristic, breaking capacity and type must match the installation and the cable cross-section. Incorrectly selected devices may cause fire or personal injury.

Test residual current devices with the test button after installation and regularly thereafter.

Observe the manufacturer's operating and installation instructions. Use only as intended.

Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:

FINDER GmbH
Hans-Böckler-Straße 44
D - 65468 Trebur-Astheim
Tel. +49 6147 2033-0
info@finder.de

Primo


Finder 7E7884000312 meter for 3-phase three-phase current, up to max, M-bus and SO interface, MID-compliant


7E.78.8.400.0312
8012823412634
Finder

Electronic 2-Tarif energy and reactive power meter with M-bus and S0 interface, bidirectional, for 3-phase three-phase current, with 8-digit LCD display, background illuminated, for 3- or 4-wire system. Displaying total consumption, partial consumption (removable) kwh, kvah, kvar - for tariff 1 and tariff 2, for all 3 phases or for each phase, instantaneous values W, A, power factor, kw, kva, kvar, frequency and current direction. LED consumption indicator: 1000 pulses per kwh, maximum current 80 A, short-term overcurrent (pulse current): 2400 A for 10 ms, starting current: 0.02 A, accuracy class B, series mounting device for support rail 35 mm (EN 60715), width of construction 72 mm, nominal voltage 3 x 230 W AC, M-bus interface: transmission rates: 300 to 9600 baud, max. S0 interface: 100 pulses per kwh. Count is MID-compliant. Connection cross-sections Main circuit: 1.5 to 35 mm in diameter, 1.5 to 35 mm in diameter, ambient temperature: -25 to + 55° C., protection type Housing/connections: IP50/IP20. Plombable clamp covers are included in the package as accessories.

€323.51 VAT included

€269.59 VAT excluded

check 2-7 days

Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:

FINDER GmbH
Hans-Böckler-Straße 44
D - 65468 Trebur-Astheim
Tel. +49 6147 2033-0
info@finder.de

Primo

Buy it with

  • Finder 7E7884000312 meter for 3-phase three-phase current, up to max, M-bus and SO interface, MID-compliant
  • +
  • Finder 406182300000 Relays with plug and print connections, 1 changer for 16 A, coil 230 V AC
  • +
  • Finder 958530 with screw connections, color black, for relays 40.52, 40.61, 44.52 or 44.62
  • Total price: €340.91
