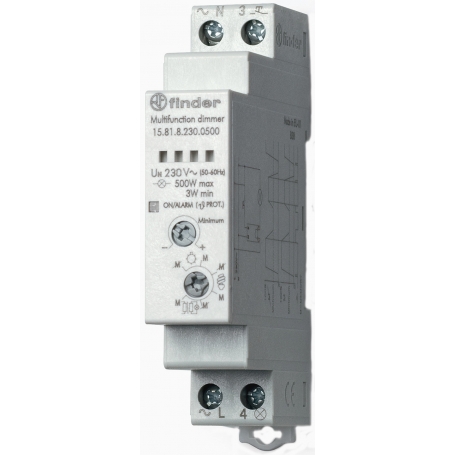

Finder 158182300500 Dimmer, electronic, for series installation, 300-500 W, 2 functions 230 V AC
zoom_out_map
chevron_left chevron_right

Safety information & warnings:

Risk of electric shock: Installation, connection and commissioning may only be carried out by a qualified electrician in accordance with the applicable installation regulations. Before working, disconnect the supply, secure it against reconnection and verify that it is de-energised.

Risk of fire: Rated current, tripping characteristic, breaking capacity and type must match the installation and the cable cross-section. Incorrectly selected devices may cause fire or personal injury.

Test residual current devices with the test button after installation and regularly thereafter.

Observe the manufacturer's operating and installation instructions. Use only as intended.

Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:

FINDER GmbH
Hans-Böckler-Straße 44
D - 65468 Trebur-Astheim
Tel. +49 6147 2033-0
info@finder.de

Primo


Finder 158182300500 Dimmer, electronic, for series installation, 300-500 W, 2 functions 230 V AC


15.81.8.230.0500
8012823358321
Finder

Dimmer for DIN rail, with memory function. 2 modes of operation for 3 types of lamps can be selected via selector switches, the minimum brightness is adjustable. Output circuit: 300-500 W. Switch-on period(ED): 100 %, minimum switching power: 3 W. Lamp loads: incandescent and halogen lamps 500 W, NV halogen lamps via ring core transformer 500 W, NV halogen lamps via iron core transformer 500 W, NV halogen lamps via EEC 500 W, dimmable energy saving lamps 100 W, dimmable LED lamps internal temperature.

€65.68 VAT included

€54.73 VAT excluded

check 2-7 days

Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:

FINDER GmbH
Hans-Böckler-Straße 44
D - 65468 Trebur-Astheim
Tel. +49 6147 2033-0
info@finder.de

Primo

Buy it with

  • Finder 158182300500 Dimmer, electronic, for series installation, 300-500 W, 2 functions 230 V AC
  • +
  • Finder 9980002498 Module, Varistor and green LED, 6 to 24 V AC/DC
  • +
  • Finder 958530 with screw connections, color black, for relays 40.52, 40.61, 44.52 or 44.62
  • Total price: €78.83
