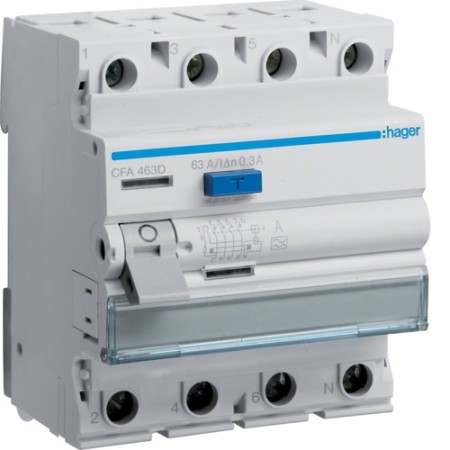

Hager CFA463D fault current circuit breaker 4 polig 6kA 63A 300mA Type A
fault current protection switches 4 polig 6kA 63A 300mA type A. fault current protection switches (FI) according to EN 61008-1, DIN EN 61008-2-1, VDE 0664 part 10 + 11, touch protection IP2x according to DIN VDE 0106 part 100. Suitable for subsequent mounting of additional devices (mount without tool). Connection terminals with wire insertion protection, Bi-Connect terminals at the bottom, external blue test button. All products with VDE characters. Labeling option directly on the device.
| Rated current | 63 A |
| Type of differential protection | A |
| Sensitivity | 300 mA |
| Number | 4 P |
| Impact current resistance (pulse fault currents 8/20μs) | 0,25 |
| Number of modules | 4 |
| Frequency | 50 Hz |
| Assembly type | DIN rail |
| Connection type | Screw technology |
| Connection cross section with flexible conductor | 16mm2 |
| Connection cross section for rigid conductor | 25mm2 |
| Torque | 2.8 Nm |
| Type of protection | IP20 |
| Insulation voltage | 500 V |
| Impact strength | 4 kV |
| Additional equipment possible | 1 |
| Operating temperature | -25 to 40 °C |
| Machine life mechanical switching games | 4000 |
| Device life, electrical switching games | 2000 |
| Total loss power at rated current | 7.7 W |
| Degree of contamination according to IEC 60664 / IEC 60947-2 | 2 |
| Height above N.N. | 2000 m |
| Rated current at 20° C | 63 A |
| Rated current at 30° C | 63 A |
| Rated current at 35° C | 63 A |
| Rated current at 40° C | 63 A |
| Rated current at 45° C | 60 A |
| Rated current at 50°C | 58 A |
| Rated current at 55° C | 55 A |
| Rated current at 60°C | 51 A |
| Rated current at 65°C | 48 A |
| Rated current at 70°C | 45 A |
| Storage temperature | -55 to 70 °C |
| Height installed product | 83 mm |
| Wide installed product | 70 mm |
| Deep Installed Product | 70 mm |
