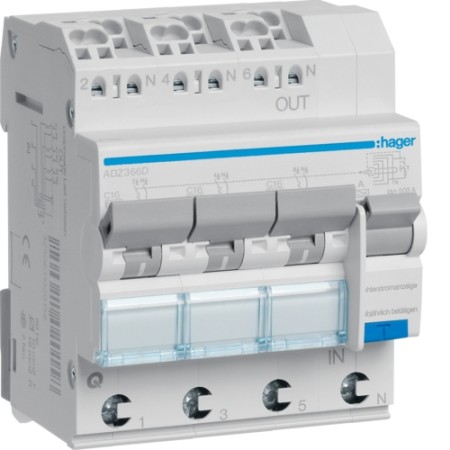

Hager ADZ366D FI/LS 3X 1P+N 6kA C-Charakt. 16A 30mA Typ A QC
zoom_out_map
chevron_left chevron_right

Hager ADZ366D FI/LS 3X 1P+N 6kA C character. 16A 30mA Type A QC



fault current circuit breaker according to DIN VDE 0664-20 / EN61009-1 with 3 x 1-pole circuit breaker for 230 V AC circuits and a fault current protection circuit in the compact housing. QuickConnect terminal according to DIN EN 60898-1, VDE 0641-11, at the output up to 16 A and at the access up to 63 A, contact protection according to IP2x DIN VDE 0106 part 100, blue test button and fault current display. Simple individual removal from the phase rail composite. With VDE characters. Suitable for subsequent installation of additional equipment. Labeling option directly on the device. Nominal current: 16 A Trigger characteristic: C Nominal shutdown capability: 6 kA Type of differential protection: A Sensitivity: 30 mA Number of poles: 4 P Number of modules: 4 Rated operating voltage Ue: 230 V

Rated current16 A
Trigger characteristicC
Rated value6
Type of differential protectionA
Sensitivity30 mA
Number4 P
Number of modules4
Rated operating voltage Ue230 V
Insulation voltage500 V
Frequency50 Hz
Torque2Nm
Total loss power at rated current10.9 W
Device life, electrical switching games2000
Machine life mechanical switching games2000
Operating temperature-5 to 40 °C
Storage temperature-55 to 70 °C
Height installed product86 mm
Wide installed product71 mm
Deep Installed Product70 mm
€124.50 VAT included €103.75 (VAT excl.)
VAT included
check 3-7 working days
