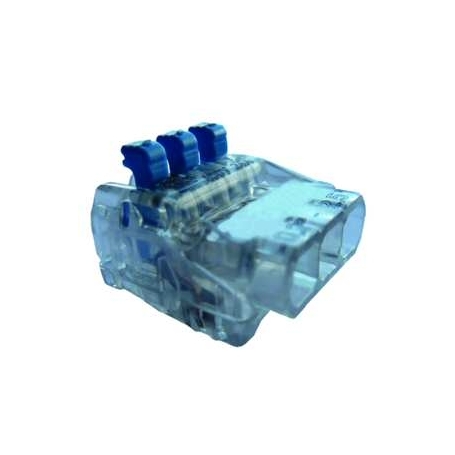

PROTEC.class PSK 325H plug clamp 3 x 0.2 - 2.5 mm2 50 pieces

Plug-in clamp with lever EN 60998-1:2004, EN 60998-2-2:2004, plug-in clamp for rigid, multi-wire and flexible conductors, for rigid conductors it is not necessary to open/close the lever before inserting the conductor, for flexible conductors, several wire cross sections compatible in one clamp, material housing and lid: polycarbonate, material insert: copper, material spring: stainless steel, insulation length 10 mm. Ambient temperature: T85, Protection type: IP20, Lever colour: blue, Test opening: Phase tester and test pin (max. Ø 2 mm,) View window for checking the clamping point leads to increased safety during assembly, high draw-off forces, time-saving, screw-free technology, easy handling Number of clamping points: 3 Colour: transparent Rated cross-section from/to: 0.2 - 2.5 mm2 Rated voltage: 450 W Rated current: 24 A
