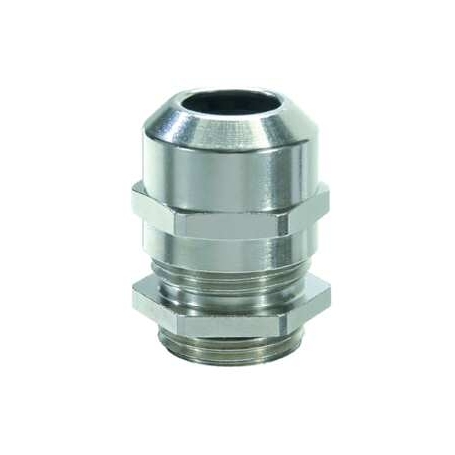

PROTEC.class PKWMM 16 cable screwing brass M16

Protection type according to EN 60529 IP68 to 5 bar (30 min). Optimum sealing and strain relief by patented lamella system. Cable connection with metric and short connection thread, with O-ring on connection thread. Material: brass nickel-plated. Material Clamp cage: polyamide. Material seal: EPDM. Surface: nickel. Application temperature range: -40° C. to +100° C., short to about 120° C. Protection class: IP68 (5 bar 30 min.). IP69. Halogen-free. Thread type: metric. Type of seal: sealing ring. Stroke. Execution of strain relief: A. Increase: 1.5 thread length: - PKWMM12, PKWMM16 = 5 mm - PKWMM20 = 6 mm - PKWMM25 = 7 mm - PKWMM32, PKWMM40 = 8 mm - PKWMM50 = 9 mm - PKWMM63 = 10 mm - PKVMM75 = 12 mm
