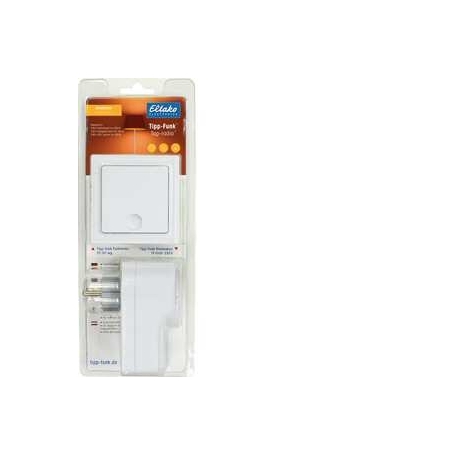

Eltako TF-BPD Tip-Funk® blister pack Dimmen

Blisterpack Dimmes with Tip-Funk® radio button TF-1FT and Tip-Funk® Universal Dimmor TF100D-230V. TF-1FT: 1-channel radio button pure white glossy for single mounting 84x84x16mm or assembly in the E-Design switch system. Creates the energy for radio telegrams even at key pressure, therefore without connection line and no stand-by loss. Radio buttons with a rocker can send an evaluable signal: press rocker at the bottom in the area of the marking. The holding plate can be screwed onto a flat surface or glued to the wall, to glass or to furniture by means of the attached adhesive film. The sleeves present in the can are used for screw fastening via a 55mm switch box. TF100D-230V: Radio-Universal-Dimmaktor-Zwischenplug. 100x55x45mm (measures without plug), pure white. With Power MOSFET. 230 V-gloss and halogen lamps up to 300 W, 230 V-LED up to 100 W. No inductive (wound) transformers. With children's room and slumber circuit. No minimum load. Stand-by-loss only 0.7 Watt. Intermediate plug for German protective contact sockets with increased contact protection. Up to 24 radio universal probes, radio direction probes, radio central control probes and movement sensors TF-BSB as well as bidirectional radio can be learned with the comfortable tip radio technology. During learning, the dimmactor can be set to phase cut in order to allow optimum dimming for different LED lights. Mounting type: other number of outputs: 1 output power from/to: 300 - 300 W Voltage range: 230 - 230 W Frequency range: 50 - 50 Hz Version: Dimmactor load type: universal protection type (IP): IP20 Power additive usable: No Bus system EIB/KNX: No Bus system Radiobus: Yes Bus system Powernet: No Bus coupling inclusive: No Bus system LON: No Other bus systems: no
