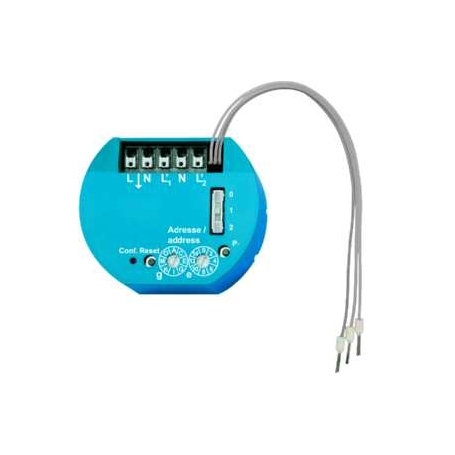

Eltako PL-SAM2L decentralized actuator

Powerline actuator for mounting in 58 mm switch cans,Powerline actuator with 2 channels, can be used as a power surge switch or relay. 1+1 lock not potential-free 5A/250V AC, incandescent lamps 1000 Watt. 2 sensor inputs with internal low voltage. Stand-by loss only 0.5 Watt. For controlling and switching at the same point. Powerline actuator with 2 channels. 53x43mm, 25mm deep, for mounting in 58mm switch boxes. Suitable as current surge switches or relays. 1+1 lock not potential-free 5A/250V AC, incandescent lamps 1000 Watt. 2 sensor inputs with internal low voltage. Stand-by loss only 0.5 Watt. For controlling and switching at the same point. Use only potential-free switching elements. Internal low voltage at the sensor inputs. For address assignment there are two rotary switches on the front: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the element address e with 16 numerical values from 0 to 15. Above it there is a sliding switch as a configuration switch with the positions 0, 1 and 2. Position 0: sensor inputs act as a pushbutton (current pushbutton switch). On the left of the rotary switches there is a red LED that displays all activities. In addition, the reset button and on the right there is a service pin. Functions according to user manual. The above connection terminals are plug terminals for conductor cross sections from 0.2mm2 to 1.5mm2. In addition, there are three strands with core end sleeves for the two control inputs with internal low voltage. Max. switching current: 5 A Max. Switching power: 1000 W Max. Number of switching outputs: 2 Bus system EIB/KNX: No Bus system Funkbus: No Bus system Powernet: Yes Bus coupling included: Yes Bus system LON: No Other bus systems: without LED display: Yes C load: Yes Various phases connectable: No Modular expansion option: No
