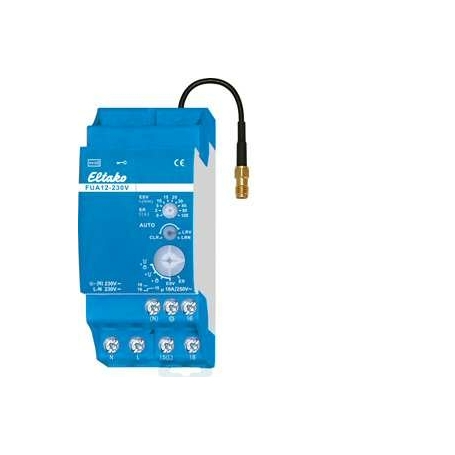

Eltako FUA12-230V Radio Universal actuator

Radio universal actuator with interchangeable antenna. Power surge relay with 1 changer potential-free 10 A/250 W AC, incandescent lamps 2000 W, with DX technology, bidirectional, vecrypted radio, stand-by-loss only 0.9 W, if required, a radio antenna FA250 or FA200 can be connected, the radio universal actuator combines the functions of a radio antenna module and an actuator as a 1-channel current exchange. Electric shock switch relay with 1 changer potential-free 10A/250V AC, light bulbs 2000W, with DX technology. Bidirectional. Encrypted radio. Stand-by loss only 0.9 Watt. If necessary, a radio antenna can be connected. Row mounting device for mounting on support rail. Supply voltage 230W. The radio universal actuator combines the functions of a radio antenna module and an actuator as a 1-channel current surge relay with DX technology. If the supply voltage fails, the switching state is maintained. When the supply voltage is recurring, it is switched off in a defined manner. After installation, wait for the automatic short synchronization before the switched consumer is placed on the network. To this end, simply connect the N conductor to the terminal (N) and L to 15 (L). This results in an additional stand-by loss of only 0.1 Watt. From the production week 08/16, this radio actuator can additionally be locally controlled with a 230V controller on the terminal. In addition, the N conductor must also be connected to the terminal (N). A glow lamp current is not permitted. 230V controller: control current 0.4mA. Maximum parallel capacity (approximately length) of the control line 0.3μF (1000m). Bidirectional radio and/or a repeater function can be switched on. Any change in state as well as the central control telegrams received are confirmed with a radio telegram in bidirectional radio. This radio telegram can be used in other actuators
