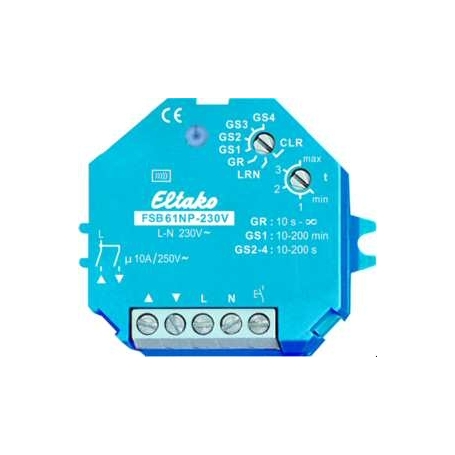

Eltako FSB61NP-230V radio actuator power surge

Radio actuator power surge group switch for installation and AP mounting, 1+1 closer not potential-free 10A/250V AC, for roller shutters and shading elements, stand-by loss only 0.8 Watt, switching and control voltage 230W radio actuator 230W. 1+1 lock not potential-free 4A/250V AC, for roller shutters and shading elements. Encrypted radio, bidirectional radio and repeater function can be switched on. Stand-by loss only 0.8 Watt. For installation. 45mm long, 45mm wide, 33mm deep. Supply, switching and control voltage locally 230W. If the supply voltage fails, it is switched off in a defined manner. In addition to the radio control input via an internal antenna, this radio actuator can also be controlled locally by means of a conventional 230V control probe mounted beforehand. Encoded sensors can be learned. Bidirectional radio and/or a repeater function can be switched on. Each state change and the central control telegrams received are then confirmed with a radio telegram. This radio telegram can be taught in other actuators, the GFVS software and in universal displays. With the upper rotary switch, up to 35 radio buttons are assigned in the LRN position, one or more central control buttons thereof. The desired function of this current surge group switch is then selected: GS1 = group switch with pushbutton control and drop delay in seconds. It is possible to learn both a radio button with the function of up-hold-down stop as a universal probe such as the local probe, and also a radio button such as a roller shutter double probe as a directional probe with up-press up and down press down. Short tipping immediately interrupts the movement. Central control can be performed dynamically with and without priority. The LED accompanies the learning process according to the user manual and displays radio control commands during operation by short flashing. Mounting type: Aufputz Integrated timer: No Mi
