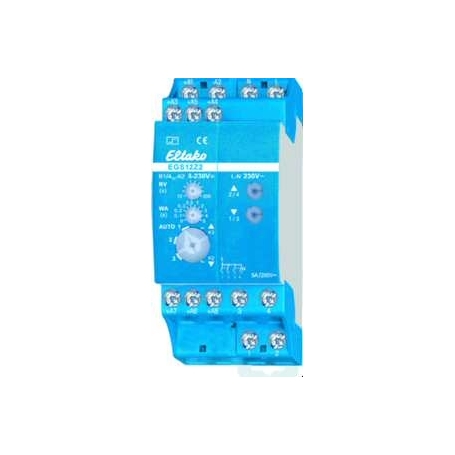

Eltako EGS12Z2-8..230V UC Current series switch

Power surge group switches for central control Processor controlled, EGS12Z2 and EGS12Z convert the commands of the sensors or the downstream sensor relays and switch two motors or one motor or the motor disconnect relay MTR12. control voltage at terminals +B1 --A2 or. A3 to A8 must be the same potential, the following non-sections: automatic transmission, reverse delay, automatic transmission, duration up, duration Aba3 and A4 for local control with a normal double shutter switchA3 and A4 alternatiw for static central control a5 and A6 for local control with a normal double shutter switchA5 and A6 alternatiw for dynamic central control. Electric shock group switches for central control for two 230V motors. Stand-by loss only 0.05 - 0.9 Watt. The control voltage at terminals A3 to A8 must have the same potential. This current surge group switch converts the commands of the sensor relays or of switches and buttons and switches two 230V motors depending on the setting of the rotary switches on the front side. 1/2 = motor 1, 3/4 = motor 2. The mode of operation corresponds completely to the current surge group switch EGS12Z-UC, in which a motor separation relay MTR12-UC is integrated. 2+2 closer 5A/250V AC Number of closers: 4 width in division units: 2 Rated switching current: 5 A Control voltage 1: 8 - 230 W Control voltage type 1: AC/DC Installation depth: 58 mm Function: electronic group switch Assembly type: DIN rail Frequency of control voltage 1: 50 - 50 Hz Voltage type of supply voltage: AC/DC Supply voltage range: 8 - 230 W Max. Switching current (cos phi = 0.6): 2 A manual operation possible: Yes
