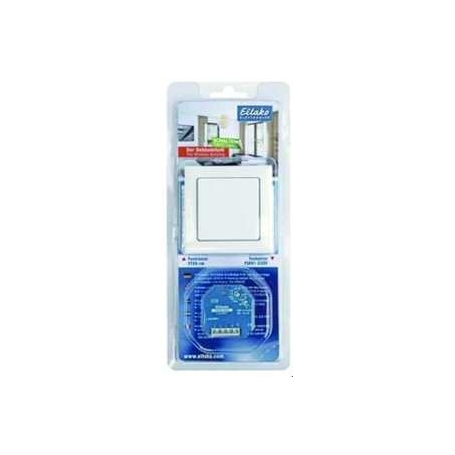

Eltako BPS55 Blister-Pack Switching

Blister-Pack Switching includes a battery- and line-free, radio button FT55 in pure white gloss, as well as a switch actuator FSR61-230V, with power surge switch function Blister-Pack Switching includes a battery- and line-free radio button FT55 in pure white gloss and a switch actuator FSR61-230V with power surge switch function. FT55-wg: radio button, 80x80mm outside, frame internal dimensions 55x55mm, 15mm high. Creates the energy for radio telegrams even at key pressure, therefore without connection line and no stand-by loss. Included are the frame R, a rocker W55, a double rocker DW55 (all the same color), a fastening frame BRF, the holding plate HP, the radio module and an adhesive film. Radio buttons with a rocker can send two evaluateable signals: press the rocker at the top and press the rocker at the bottom. Radio buttons with double rocker can send four evaluateable signals: press two rockers up and down. The holding plate can be screwed onto a flat surface or glued to the wall, to glass or to furniture by means of the attached adhesive film. The sleeves present in the can are used for screw fastening via a 55mm switch box. The radio sensor illumination FTB can then also be latched from behind to the holding plate. From work, the double rocker is locked onto the radio module. If these are to be exchanged for the large rocker, then pull the rocker halves forward and do not bend towards the center. Then the large rocker snaps on in such a way that its markings 0 and I correspond to the radio module on the rear side. When gluing first the set holding plate with frame and fastening frame ? glue with the latches on top and bottom. Then the set radio module with rocker ? Marking 0 on the back always snap up. Before screwing, release the frame with fastening frame from the holding plate. To this end, press the detents of the holding plate outwardly. Then the holding plate with the latch
