Safety information & warnings:
Risk of electric shock: Installation, connection and commissioning may only be carried out by a qualified electrician in accordance with the applicable installation regulations. Before working, disconnect the supply, secure it against reconnection and verify that it is de-energised.
Risk of fire: Rated current, tripping characteristic, breaking capacity and type must match the installation and the cable cross-section. Incorrectly selected devices may cause fire or personal injury.
Test residual current devices with the test button after installation and regularly thereafter.
Observe the manufacturer's operating and installation instructions. Use only as intended.
Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:
Eaton Industries (Austria) GmbH
Eugenia 1 A-3943 Schrems
Tel.: +43 (0) 50868 - 0
infoaustria@eaton.com

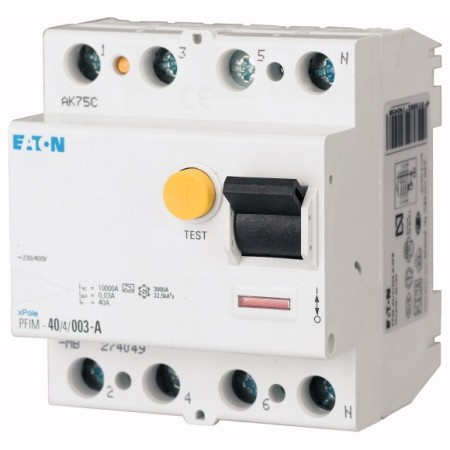

Eaton PFIM-40/4/003-MW FI circuit breaker AC 40A/4 30mA 250A 235410
|
Number
|
4 | ||
|
Measurement voltage
|
V | 400 | |
|
Rated current
|
A | 40 | |
|
Measurement error current
|
A | 0.03 | |
|
Assembly type
|
DIN rail | ||
|
Error current type
|
AC | ||
|
Selective type
|
no | ||
|
Short-circuit strength (Icw)
|
KA | 10 | |
|
Impact resistance
|
KA | 0.25 | |
|
Frequency
|
50 Hz | ||
|
Additional equipment possible
|
yes | ||
|
Type of protection (IP)
|
IP20 | ||
|
Size (according to DIN 43880)
|
1 | ||
|
Width in division units
|
4 | ||
|
Installation depth
|
mm | ANNEX | |
|
Short-term delayed type
|
no |
