Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:
Eaton Industries (Austria) GmbH
Eugenia 1 A-3943 Schrems
Tel.: +43 (0) 50868 - 0
infoaustria@eaton.com
Out-of-Stock

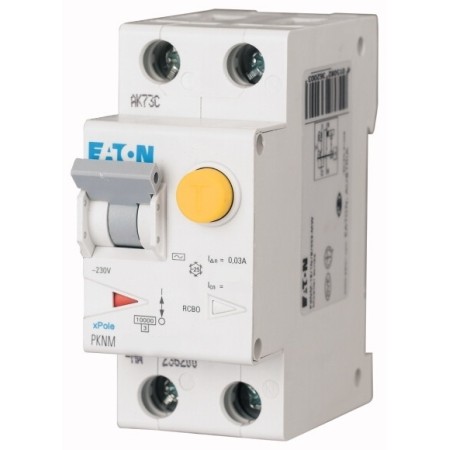

Eaton PKNM-16/1N/C/003-G-MW FI/LS switch AC 16A/1+N/C 30mA Type 'G' 3kA 236221
|
Number of poles (total)
|
2 | ||
|
Number of secured poles
|
1 | ||
|
Measurement voltage
|
V | 230 | |
|
Rated current
|
A | 16 | |
|
Measurement error current
|
A | 0.03 | |
|
Error current type
|
- | ||
|
Energy limiting class
|
3 | ||
|
Dimensional switching capacity according to EN 60898
|
KA | 10 | |
|
IEC 60947-2 rated
|
KA | 0 | |
|
Frequency
|
50 Hz | ||
|
Trigger characteristic
|
C | ||
|
Interconnecting neutral conductor
|
yes | ||
|
Overvoltage category
|
3 | ||
|
Pollution
|
2 | ||
|
Width in division units
|
2 | ||
|
Installation depth
|
mm | 70 | |
|
Suitable for underground installation
|
no | ||
|
Type of protection (IP)
|
IP20 | ||
|
Impact resistance
|
KA | 3 | |
|
Type of voltage
|
AC | ||
|
Missing trigger protection
|
yes |
