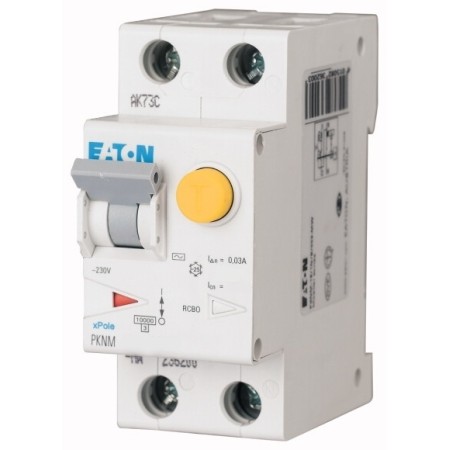

Eaton PKNM-13/1N/C/003-A-MW FI/LS switch A 13A/1+N/C 30mA 250A 236145
zoom_out_map
chevron_left chevron_right

Safety information & warnings:

Risk of electric shock: Installation, connection and commissioning may only be carried out by a qualified electrician in accordance with the applicable installation regulations. Before working, disconnect the supply, secure it against reconnection and verify that it is de-energised.

Risk of fire: Rated current, tripping characteristic, breaking capacity and type must match the installation and the cable cross-section. Incorrectly selected devices may cause fire or personal injury.

Test residual current devices with the test button after installation and regularly thereafter.

Observe the manufacturer's operating and installation instructions. Use only as intended.

Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:

Eaton
Eaton Industries (Austria) GmbH
Eugenia 1​ A-3943 Schrems
Tel.: +43 (0) 50868 - 0​
infoaustria@eaton.com

Primo


Eaton PKNM-13/1N/C/003-A-MW FI/LS switch A 13A/1+N/C 30mA 250A 236145


236145
4015082361457
Eaton

Polzahl (gesamt)
    2
Anzahl der abgesicherten Pole
    1
Bemessungsspannung
  V 230
Bemessungsstrom
  A 13
Bemessungsfehlerstrom
  A 0.03
Fehlerstrom-Typ
    A
Energiebegrenzungsklasse
    3
Bemessungsabschaltvermögen nach EN 60898
  kA 10
Bemessungsabschaltvermögen nach IEC 60947-2
  kA 0
Frequenz
    50 Hz
Auslösecharakteristik
    C
Mitschaltender Neutralleiter
    ja
Überspannungskategorie
    3
Verschmutzungsgrad
    2
Breite in Teilungseinheiten
    2
Einbautiefe
  mm 70
Geeignet für Unterputz-Installation
    nein
Schutzart (IP)
    IP20
Stoßstromfestigkeit
  kA 0.25
Spannungsart
    AC
Fehlauslöseschutz
    nein

€80.40 VAT included

€67.00 VAT excluded

check 2-5 days

Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:

Eaton
Eaton Industries (Austria) GmbH
Eugenia 1​ A-3943 Schrems
Tel.: +43 (0) 50868 - 0​
infoaustria@eaton.com

Primo
