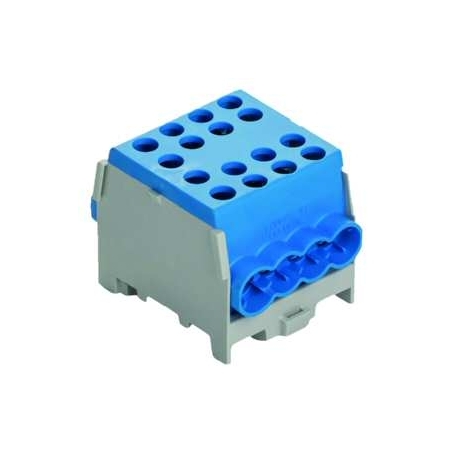

PROTEC.class PHLAK3526BL main line branch terminal

Conductor terminals for mounting on DIN rails, e.g. for small installation distributors and counters acc. WDE 0603. 35/25 mm2. 1-pole. Classy. Mounting on 35 mm support rail according to. EN 60715 / EN 50022. Installation small distributor and counter positions AC 400W. Main line branch terminals WDE 0603-2, connection material for low voltage circuits for household and similar purposes WDE 0613, Part 1 / EN 60998-1. Color coding corresponding to valid vein colors. Mounting horizontally or vertically. Insulation voltage: 1000 W AC / DC for: Overvoltage category III (Uimp = 8 kw, fixed installation,) Level of contamination 2 (e.g. distribution installation). WDE certified (WDE 0613, Part 1 / EN 60998-1): Test current 125 A. Suitable for Cu and Al conductors. Clamp: brass (galvanized). Clamp screws: steel, galvanized. Insulation housing: plastic (polyamide,) impact-resistant, halogen-free. Line connection: - Main line: 10 - 35 mm2 rigid/multi-wire, 3.5 Nm - branch line: 1.5 - 25 mm2 rigid/multi-wire, 2.5 Nm - stripping length: 25 mm. Inputs max. 35 mm2: 2. Outputs max. 25 mm2: 6. Bushing clamp with 2 screws per clamping point, screws with combination slot Pozidriv Z2. Corners rounded. miter protection: IP20, fingerproof
