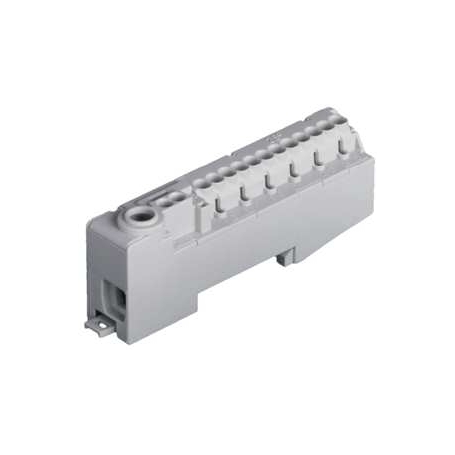

PROTEC.class PAZKS 15 branch terminal with 15 terminals

Safety information & warnings:

Risk of electric shock: To be installed only by a qualified electrician and only when de-energised.

Risk of fire: Observe the permissible conductor cross-sections, conductor types, rated current and voltage, and tightening torques. Loose or overloaded connections can overheat.

Crimp ferrules, cable lugs and connectors only with suitable tools.

Observe the manufacturer's installation instructions. Use only as intended.

Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:

Würth Elektrogroßhandel GmbH & Co. KG
Produktbereich PROTEC.class und PROTEC.net
Ludwig-Erhard-Straße 21-39
65760 Eschborn / Ts.
Deutschland
Telefon: +43 0 61 96 / 477- 895
E-Mail: info@protecclass.de

PROTEC.class PAZKS 15 branch terminal with 15 terminals

Name: PROTEC.class PAZKS 15 branch terminal with 15 terminals
Brand: Protec
SKU: 5105396
Price: 7.78 EUR
Availability: InStock

Reference: 5105396

EAN: 4016705153961

Brand: Protec

Zero,- protective conductor and diverter terminal conductor terminals for mounting on DIN support rails, e.g. for installation small distributors and counters acc. WDE 0603. Clamping points: 14 plug connections + 1 screw connection possible to mount behind the clamp cover. Corners rounded. Cable connection: plug connection 12 x 1 ... 2.5 mm2 rigid/multi-reversal or. 0.75 ... 1.5 mm2 with wire end sleeve 2 x 1 ... 4 mm2 rigid/several, plug connection 1 ... 2.5 mm2 with wire end sleeve screw connection (feed line): 1 x 1.5 ... 25 mm2 rigid/several. 1 ... 16 mm2 with wire end sleeve. standards / regulations: connecting material - electrical copper conductors; Safety requirements for screw terminals and screwless clamping points. WDE 0609, Part 1 / EM 60999-1 Connecting material for low voltage circuits for household and similar purposes WDE EN 60998-1; WDE 0613-1. Mounting: On DIN support rail according to EN 50022 / EN 60715 rated current: 80 A (feed line). Insulation voltages: 500 V (degree of contamination 2, overvoltage category III). Contact protection: BGW A2 / WBG4, fingerproof

€7.78

€7.78 VAT excluded
