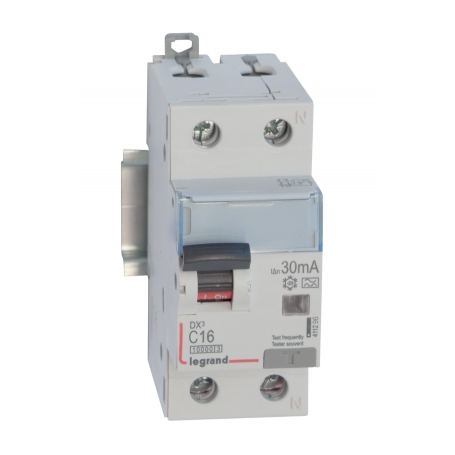

Legrand 411296 DX3 FI/LS switch C-characteristics, 16A, 1P+N, 10kA, 30mA, type A, 230VAC, 2TE
zoom_out_map
chevron_left chevron_right

Safety information & warnings:

Risk of electric shock: Installation, connection and commissioning may only be carried out by a qualified electrician in accordance with the applicable installation regulations. Before working, disconnect the supply, secure it against reconnection and verify that it is de-energised.

Risk of fire: Rated current, tripping characteristic, breaking capacity and type must match the installation and the cable cross-section. Incorrectly selected devices may cause fire or personal injury.

Test residual current devices with the test button after installation and regularly thereafter.

Observe the manufacturer's operating and installation instructions. Use only as intended.

Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:

Legrand Austria GmbH
Floridsdorfer Hauptstraße 1-7
1210 Wien
Österreich
Telefon: +43 1 277 62
E-Mail: office.austria@legrand.at

Legrand 411296 DX3 FI/LS switch C-characteristics, 16A, 1P+N, 10kA, 30mA, type A, 230VAC, 2TE

411296
3414970447074
Legrand
Legrand FI/LS switch DX3, 1-pole with switching neutral conductor, type A, for alternating and pulsating direct fault currents according to EN 61009-1, VDE 0664-20, undelayed, measurement current In 1 A, measurement error current Idn 30 mA.C characteristic, measurement voltage Un 230 VAC, measurement frequency 50 Hz. Fastening to DIN profile rail EN 60715 by latching quick fixes, clear information on the front of each device, unambiguous switching position indicator red/green on switching lever (lockable), with labeling window, with undercut protection for safe insertion of the conductor into elevator terminal, attachment of auxiliary devices possible.

€87.00 VAT included

€72.50 VAT excluded

check 2-7 days
