Safety information & warnings:
Risk of electric shock: Installation, connection and commissioning may only be carried out by a qualified electrician in accordance with the applicable installation regulations. Before working, disconnect the supply, secure it against reconnection and verify that it is de-energised.
Risk of fire: Rated current, tripping characteristic, breaking capacity and type must match the installation and the cable cross-section. Incorrectly selected devices may cause fire or personal injury.
Test residual current devices with the test button after installation and regularly thereafter.
Observe the manufacturer's operating and installation instructions. Use only as intended.
Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:
Legrand Austria GmbH
Floridsdorfer Hauptstraße 1-7
1210 Wien
Österreich
Telefon: +43 1 277 62
E-Mail: office.austria@legrand.at

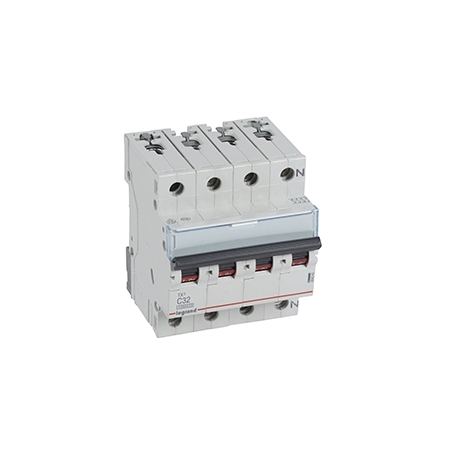

Legrand 404242 TX3 C-characteristic circuit breaker, 32A, 3-pin+N, 10kA, 400VAC, 4TE
Legrand Safety switch TX3 according to EN 60898-1, VDE 0641-11, EN 60947-2, 3-pin with switching neutral conductor, C-characteristics, measurement current In 32 A, measurement switching capacity Icn10 kA according to EN 60898-1, measurement voltage Un 400 VAC, measurement frequency 50/60 Hz, energy limiting class 3, attachment to hat profile rail EN 607. Circuit protection switches with C-characteristics are provided for line protection in devices with high switch-on currents (e.g. motors and transformers).
