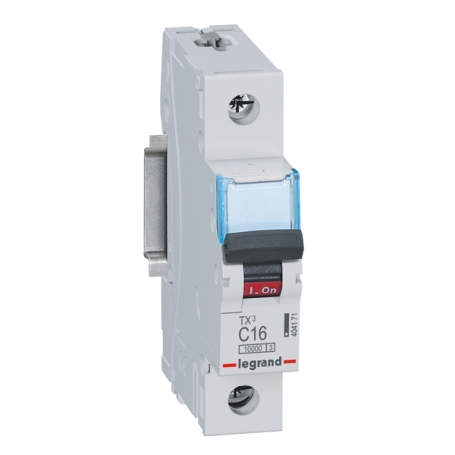

Legrand 404171 TX3 Circuit breaker C-Characteristic, 16A, 1-pole, 10kA,230/400VAC, 1TE



Legrand Safety switch TX3 according to EN 60898-1, VDE 0641-11, EN 60947-2, 1-pole, C-characteristics, Rated current In 16 A, Rated switching capacity Icn 10 kA according to EN 60898-1, Rated voltage Un 230/400 VAC, Rated frequency 50/60 Hz, Energy limiting class 3, Mounting on hat profile rail EN 60715. Circuit protection switches with C-characteristics are provided for line protection in devices with high switch-on currents (e.g. motors and transformers).

€4.25 VAT included €3.54 (VAT excl.)
VAT included
check 2-7 days
