Safety information & warnings:
Risk of electric shock: Installation, connection and commissioning may only be carried out by a qualified electrician in accordance with the applicable installation regulations. Before working, disconnect the supply, secure it against reconnection and verify that it is de-energised.
Risk of fire: Rated current, tripping characteristic, breaking capacity and type must match the installation and the cable cross-section. Incorrectly selected devices may cause fire or personal injury.
Test residual current devices with the test button after installation and regularly thereafter.
Observe the manufacturer's operating and installation instructions. Use only as intended.
Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:
Hager Vertriebsgesellschaft mbH & Co. KG
Zum Gunterstal
66440 Blieskastel
Tel: +49 6842 945 0
E-Mail: info@hager.de

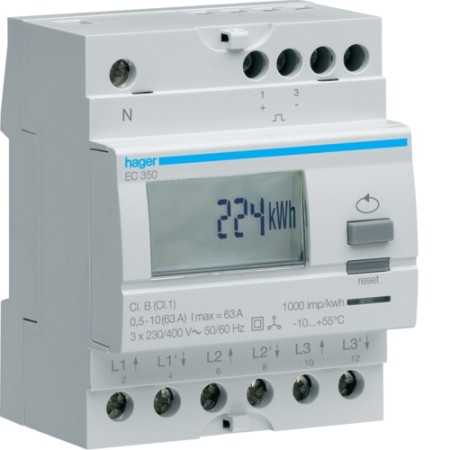

Hager EC350 Energy meter (electricity meter) three-phase, 1 tariff, direct measurement 63A
Energy meter three-phase, 1 tariff, direct measurement 63A three-phase energy meter for direct measurement of energy consumption up to 63 A with high accuracy (class B). Suitable for use in all network systems. They are equipped with an illuminated digital display that allows the display of energy consumption and power in a resolution of 7 digits including a descending point. A total counter and a partial counter with counter resetting are integrated. The consumption (counter value) can be transmitted remotely by a pulse output. Wiring errors and connection errors are displayed and the measurement data are stored periodically. Connection: Direct connection Operating current: 0.04/63 A Max. Current (I max) of the measuring circuit: 63 A Power consumption: 8.4 VA Number of modules: 4 Frequency: 50/60 Hz
