Safety information & warnings:
Installation and connection only by a qualified person. Disconnect mains-powered devices (e.g. multiswitches, amplifiers, power supplies) from the mains before working on them.
Earth antenna systems and include them in the equipotential bonding in accordance with the applicable standards. Work on roofs or masts only with suitable fall protection.
Observe the manufacturer's operating and installation instructions. Use only as intended.
Angaben laut EU-Produktsicherheitsverordnung (GPSR):
Hersteller:
Hager Vertriebsgesellschaft mbH & Co. KG
Zum Gunterstal
66440 Blieskastel
Tel: +49 6842 945 0
E-Mail: info@hager.de

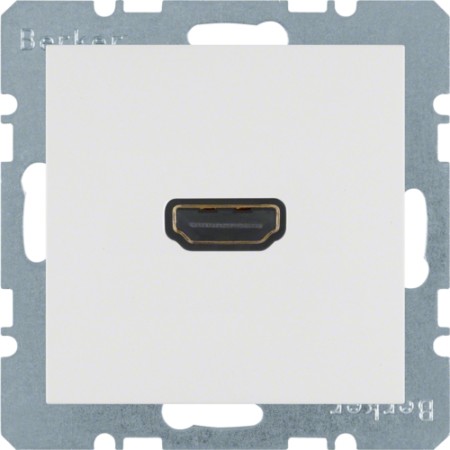

Berker 3315438989 S1/B.x HDMI SD with 90° connector polar white glossy
High definition socket with 90° socket Berker S.1/B.3/B.7 polar white, g
High definition socket (HDMI) with 90° connector Berker S.1/B.3/B.7 polar white, glossy video bandwidth max. 165 MHz resolution max. 1080p (1920 x 1080 px) frequency range (vertical) 50 - 85 Hz transmission rate max. 8,16 GBit/s For the connection of digital devices for the transmission of high-resolution audio and video signals, for example from an SAT receiver, DVD or BD player to a display device, such as LCD or plasma screen. Notices from cable and device manufacturers for maximum HDMI cable length! - Gold-plated contacts - without spreader claws - 90° angled rear bushing - with HDMI double bushing type A, supports HDMI technology (V 1.3 with Deep Color)
